Product Detailed Parameters

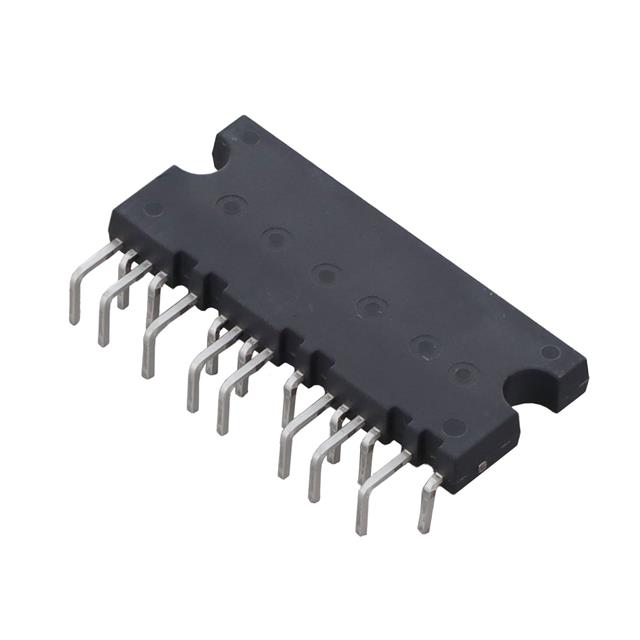

- Description：CIPOS MICRO
- Series：IM241, CIPOS™
- Mfr：Infineon Technologies
- Package：Tube
- IGBT Type：-
- Configuration：Three Phase Inverter
- Vce(on) (Max) @ Vge, Ic：1.78V @ 15V, 500mA
- Input：Standard
- NTC Thermistor：Yes
- Operating Temperature：-40°C ~ 150°C (TJ)
- Mounting Type：Through Hole
- Package / Case：-
- Supplier Device Package：23-DIP
- Voltage - Collector Emitter Breakdown (Max)：600 V
- Current - Collector (Ic) (Max)：-
- Power - Max：9 W
- Current - Collector Cutoff (Max)：-
- Input Capacitance (Cies) @ Vce：-
Download product information
Overview
The IM241-S6T2BAKMA1 is a CIPOS Micro intelligent power module featuring a 600 V reverse conducting IGBT and integrated gate drivers. It supports a DC link voltage up to 400 V with a collector current of 2 A. The fast-speed version provides optimized switching times for low loss applications. Key features include an open-emitter configuration for phase current monitoring, built-in NTC thermistor for temperature feedback, and programmable fault clear functionality via the RFE pin.
Feature Summary
- Integrated bootstrap functionality with isolated high-side floating supply
- Open emitter pins accessible for precise phase current monitoring
- Built-in NTC thermistor for direct temperature output
- Programmable fault clear timer and overcurrent shutdown protection
Applications
- High-efficiency appliance motor drives
- Fan and pump control systems
- Small home appliances
Procurement Notes
Verify the specific ordering suffix against official Infineon documentation to confirm package type and speed variant. Ensure the component matches the required DIP or SOP form factor. Cross-reference the datasheet revision history to validate technical parameters before finalizing procurement specifications.
Selection Notes
Select this module for applications requiring compact integration of power and control components. The fast-speed variant is suitable for optimizing system losses. Verify that the controller logic levels are compatible with the 3.3 V or 5.0 V input requirements. Ensure adequate thermal management is provided for the specified operating case temperature range.
Part Context
This component belongs to the CIPOS Micro IM241 product group designed for integrating power and control functions. It utilizes reverse conducting IGBT technology combined with rugged half-bridge drivers. The series offers both surface mount and through-hole configurations to optimize PCB size and system costs for various industrial applications.
Replacement Considerations
Consult the official CIPOS Micro IM241 datasheet for confirmed substitute part numbers within the same family. Verify compatibility regarding package dimensions, pin assignments, and electrical ratings before implementing any replacement.
