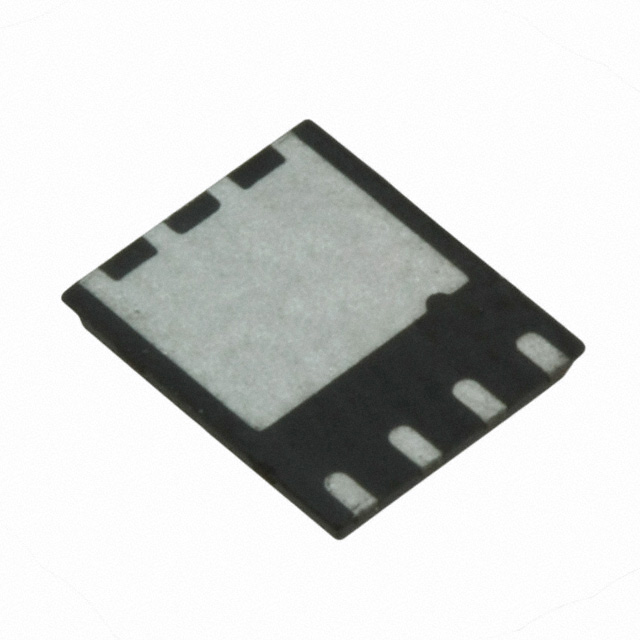

IRFH5010TRPBF

$1.49

Description：MOSFET N-CH 100V 13A/100A 8PQFN
Series：HEXFET®
Mfr：Infineon Technologies
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:f3f11bbe815c Category: Single FETs, MOSFETs Brand: Infineon Technologies

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

IRFH5010TRPBF is listed in the Single FETs, MOSFETs range at ChipApex. The manufacturer field lists Infineon Technologies. Its product description is MOSFET N-CH 100V 13A/100A 8PQFN. Review the specifications below when checking this part for your BOM.

Single FETs, MOSFETs specifications for IRFH5010TRPBF

Description：MOSFET N-CH 100V 13A/100A 8PQFN
Series：HEXFET®
Mfr：Infineon Technologies
Package：Tape & Reel (TR),Cut Tape (CT)
FET Type：N-Channel
Technology：MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)：100 V
Current - Continuous Drain (Id) @ 25°C：13A (Ta), 100A (Tc)
Drive Voltage (Max Rds On, Min Rds On)：10V
Rds On (Max) @ Id, Vgs：9mOhm @ 50A, 10V
Vgs(th) (Max) @ Id：4V @ 150µA
Gate Charge (Qg) (Max) @ Vgs：98 nC @ 10 V
Vgs (Max)：±20V
Input Capacitance (Ciss) (Max) @ Vds：4340 pF @ 25 V
FET Feature：-
Power Dissipation (Max)：3.6W (Ta), 250W (Tc)
Operating Temperature：-55°C ~ 150°C (TJ)
Grade：-
Qualification：-
Mounting Type：Surface Mount
Supplier Device Package：8-PQFN (5x6)
Package / Case：8-PowerVDFN

Single FETs, MOSFETs datasheet and documents for IRFH5010TRPBF

IRFH5010TRPBF

Single FETs, MOSFETs Overview

The IRFH5010TRPBF is a single N-channel enhancement mode power MOSFET from the HEXFET G174 series, manufactured by Infineon Technologies. It utilizes a PQFN 5x6 mm surface-mount package with an industry-standard pinout. The device features a drain-to-source voltage (VDS) of 100 V and a maximum continuous drain current (ID) of 100 A at a case temperature of 25°C. The typical on-resistance (RDS(on)) is 7.5 mΩ, with a maximum rating of 9.0 mΩ at VGS = 10 V. Total gate charge (Qg) is typically 67 nC.

Single FETs, MOSFETs Feature Summary

Low thermal resistance to PCB for increased power density
Industry-standard pinout for multi-vendor compatibility
Compatible with existing surface mount techniques

Single FETs, MOSFETs Applications

Secondary side synchronous rectification
Inverters for DC motors
DC-DC brick applications

Single FETs, MOSFETs Procurement Notes

Verify component authenticity through authorized distributors or direct manufacturer channels. Confirm datasheet revision status and specific lot traceability requirements before integration. Ensure compliance with RoHS directives and industrial qualification standards relevant to the target deployment environment.

Single FETs, MOSFETs Selection Notes

Evaluate thermal management capabilities based on the specified junction-to-case thermal resistance. Verify that the gate drive circuitry can supply sufficient current to manage the total gate charge effectively. Assess the operating temperature range against the specified -55°C to +150°C limits to ensure reliable performance under expected load conditions.

Single FETs, MOSFETs Part Context

This component belongs to the HEXFET G174 family of silicon power MOSFETs designed for high-efficiency switching applications. The PQFN 5x6 mm package provides a compact footprint suitable for dense board layouts while maintaining robust electrical characteristics for medium-voltage power conversion tasks.
