IRFHM8363TR2PBF

FET, MOSFET Arrays Overview

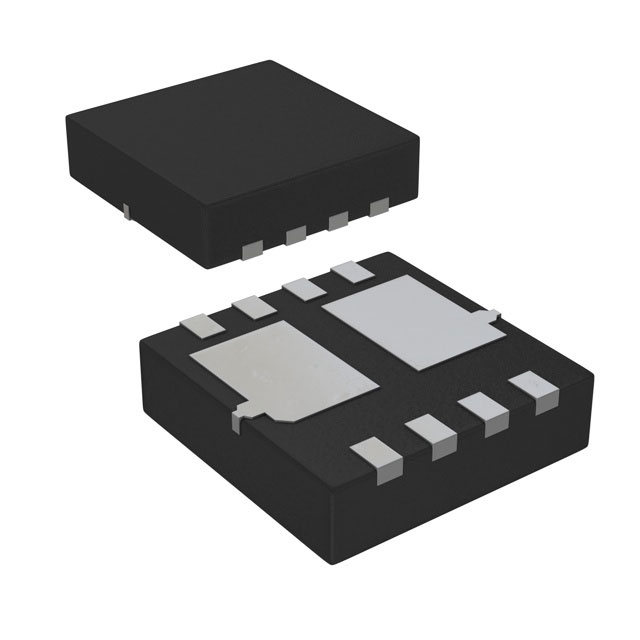

The IRFHM8363TR2PBF is a dual N-channel HEXFET power MOSFET manufactured by Infineon Technologies. It utilizes a PQFN 3.3mm x 3.3mm lead-free package. The device supports a maximum drain-source voltage of 30V and a continuous drain current of 11A at 25°C ambient temperature. Maximum on-resistance is specified at 14.9mΩ at 10V gate drive and 20.4mΩ at 4.5V. Thermal performance includes a junction-to-ambient thermal resistance of 47K/W and a maximum junction temperature of 150°C. Gate charge characteristics feature a typical Qgd of 2nC and total Qg of 15nC.

FET, MOSFET Arrays Feature Summary

• Dual N-channel configuration within a compact PQFN footprint
• HEXFET technology for optimized switching performance
• Lead-free construction compliant with RoHS standards

FET, MOSFET Arrays Applications

• Motor control systems
• Switching mode power supplies (SMPS)

FET, MOSFET Arrays Procurement Notes

Verify the specific ordering suffix TR2PBF against official Infineon documentation to confirm tape-and-reel packaging and lead-free status. Confirm component availability as the base model IRFHM8363 is listed as discontinued in public records. Ensure the datasheet version matches the production batch requirements for your design.

FET, MOSFET Arrays Selection Notes

Select this component for low-voltage applications requiring dual channel integration in a small surface-mount package. Evaluate the 14.9mΩ on-resistance against system conduction loss targets. Consider the 30V rating for compatibility with standard logic-level gate drivers operating at 4.5V or 10V.

FET, MOSFET Arrays Part Context

This part belongs to the Infineon HEXFET family, designed for general-purpose power switching. The PQFN 3.3x3.3 package offers thermal efficiency suitable for space-constrained designs. It serves as a discrete solution for driving loads in motor and power supply circuits where dual channels are beneficial.

FET, MOSFET Arrays Replacement Considerations

Public records indicate the base model IRFHM8363 is discontinued. Verify if the IRF8313TRPBF serves as a functional substitute, noting its SOIC-8 package and similar 30V/9.7A specifications. Cross-reference electrical parameters carefully before implementation.
