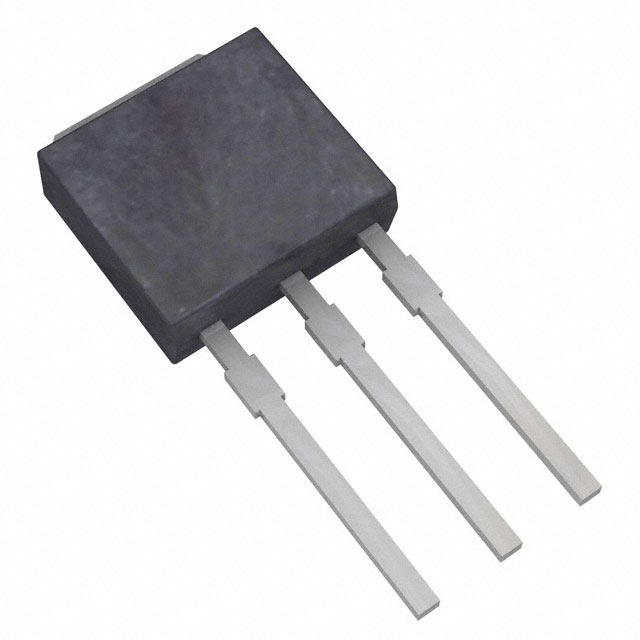

IRFU3710ZPBF

Description：MOSFET N-CH 100V 42A IPAK
Series：HEXFET®
Mfr：Infineon Technologies
Package：Tube

SKU:7d3386f986dc Category: Single FETs, MOSFETs Brand: Infineon Technologies

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

IRFU3710ZPBF is listed in the Single FETs, MOSFETs range at ChipApex. The manufacturer field lists Infineon Technologies. Its product description is MOSFET N-CH 100V 42A IPAK. Review the specifications below when checking this part for your BOM.

Single FETs, MOSFETs specifications for IRFU3710ZPBF

Description：MOSFET N-CH 100V 42A IPAK
Series：HEXFET®
Mfr：Infineon Technologies
Package：Tube
FET Type：N-Channel
Technology：MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)：100 V
Current - Continuous Drain (Id) @ 25°C：42A (Tc)
Drive Voltage (Max Rds On, Min Rds On)：10V
Rds On (Max) @ Id, Vgs：18mOhm @ 33A, 10V
Vgs(th) (Max) @ Id：4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs：100 nC @ 10 V
Vgs (Max)：±20V
Input Capacitance (Ciss) (Max) @ Vds：2930 pF @ 25 V
FET Feature：-
Power Dissipation (Max)：140W (Tc)
Operating Temperature：-55°C ~ 175°C (TJ)
Grade：-
Qualification：-
Mounting Type：Through Hole
Supplier Device Package：IPAK (TO-251AA)
Package / Case：TO-251-3 Short Leads, IPAK, TO-251AA

Single FETs, MOSFETs datasheet and documents for IRFU3710ZPBF

IRFU3710ZPBF

Single FETs, MOSFETs Overview

The IRFU3710ZPBF is a single N-channel power MOSFET from Infineon Technologies, utilizing HEXFET technology. It features a 100V drain-source voltage rating and a continuous drain current of 42A at case temperature. The device operates with a maximum power dissipation of 140W and supports junction temperatures up to 175°C. Packaged in the IPAK (TO-251AA) format for through-hole mounting, it offers low on-resistance characteristics suitable for efficient power switching applications.

Single FETs, MOSFETs Feature Summary

HEXFET power MOSFET technology
Through-hole IPAK package
High junction temperature capability

Single FETs, MOSFETs Applications

Power switching circuits
DC-DC converters
Motor control systems

Single FETs, MOSFETs Procurement Notes

Verify component authenticity by checking manufacturer markings against official datasheets. Confirm the specific suffix indicates the IPAK package variant. Ensure supply chain sources are authorized distributors to avoid counterfeit parts. Review RoHS compliance documentation prior to integration into regulated assemblies.

Single FETs, MOSFETs Selection Notes

Select this component when a through-hole N-channel MOSFET with 100V rating is required. Compare thermal resistance values against available PCB copper area. Evaluate gate charge requirements against driver capabilities. Consider the IPAK footprint constraints during layout design.

Single FETs, MOSFETs Part Context

This part belongs to the Infineon HEXFET family of power MOSFETs. It shares electrical specifications with other variants like the IRFR3710Z but differs in physical packaging. The IPAK form factor provides mechanical stability for through-hole assembly processes compared to surface-mount alternatives.
