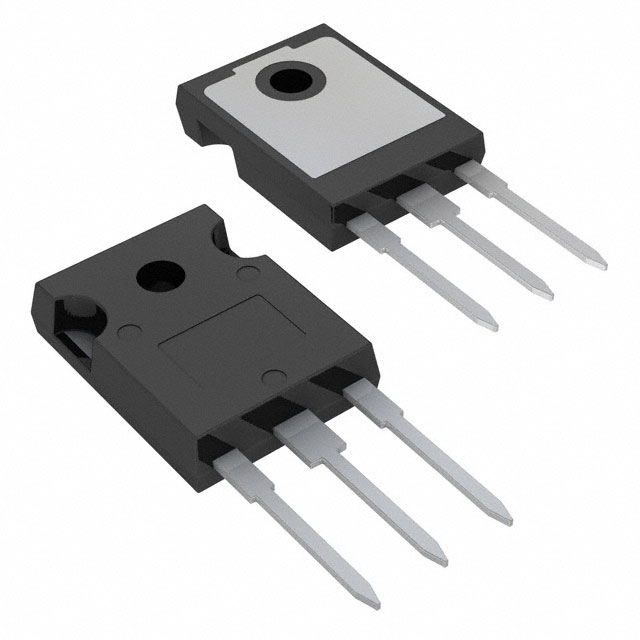

IRG4PC50F-EPBF

Description：IGBT 600V 70A TO-247AD
Series：-

SKU:e6c3e43c6a93 Category: Single IGBTs Brand: Infineon Technologies

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IGBT 600V 70A TO-247AD
Series：-
Mfr：Infineon Technologies
Package：Tube
IGBT Type：-
Voltage - Collector Emitter Breakdown (Max)：600 V
Current - Collector (Ic) (Max)：70 A
Current - Collector Pulsed (Icm)：280 A
Vce(on) (Max) @ Vge, Ic：1.6V @ 15V, 39A
Power - Max：200 W
Switching Energy：370µJ (on), 2.1mJ (off)
Input Type：Standard
Gate Charge：190 nC
Td (on/off) @ 25°C：31ns/240ns
Test Condition：480V, 39A, 5Ohm, 15V
Reverse Recovery Time (trr)：-
Operating Temperature：-55°C ~ 150°C (TJ)
Mounting Type：Through Hole
Package / Case：TO-247-3
Supplier Device Package：TO-247AD
Grade：-
Qualification：-

Download product information

IRG4PC50F-EPBF

Overview

The IRG4PC50F-EPBF is a single N-channel Insulated Gate Bipolar Transistor (IGBT) manufactured by Infineon Technologies. It features a maximum collector-emitter voltage of 600 V and a continuous collector current of 39 A at 25°C. The device utilizes ultrafast soft recovery diode technology and is housed in a TO-247AC through-hole package. It operates within a temperature range of -55°C to +150°C, with a maximum power dissipation of 200 W.

Feature Summary

Integrates an ultrafast soft recovery anti-parallel diode for efficient commutation.
Designed for high switching frequency applications up to 25 kHz.
Utilizes planar trench gate and field-stop technology for low conduction losses.

Applications

High-frequency motor drives
Uninterruptible power supplies (UPS)
Switch-mode power supplies

Procurement Notes

Verify the specific suffix against official datasheets to confirm electrical characteristics and packaging details. Ensure compatibility with thermal management requirements for the intended operating environment. Confirm RoHS compliance status as per the latest manufacturer documentation before integration into designs.

Selection Notes

Select this component for circuits requiring robust performance at moderate switching frequencies. Evaluate thermal resistance parameters to ensure adequate heat sinking. Compare saturation voltage specifications against system efficiency targets to determine suitability for the specific load conditions.

Part Context

This IGBT belongs to the IRG4PC series, designed for general-purpose industrial applications. It represents a standard discrete solution for power conversion stages where cost-effective switching and reliable operation are prioritized over extreme miniaturization or ultra-high frequency performance.

Replacement Considerations

Consult official replacement guides for direct equivalents. Verify pinout compatibility and thermal interface dimensions when substituting with similar TO-247 packages from other manufacturers.
