IXTL2X240N055T

FET, MOSFET Arrays Overview

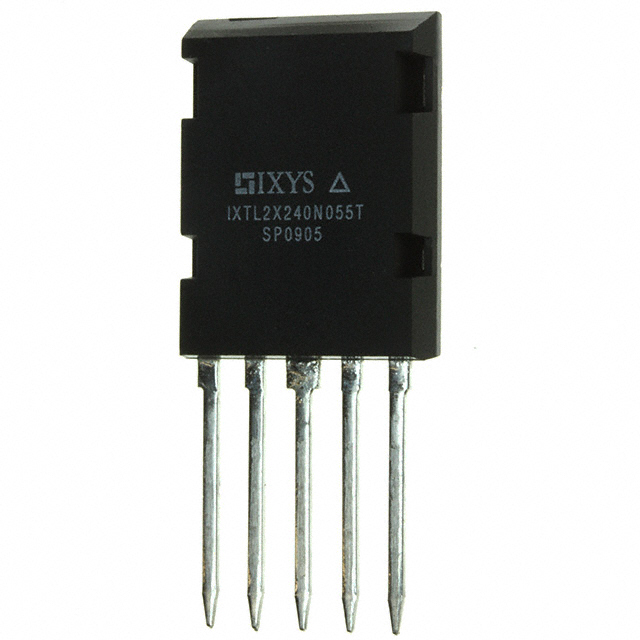

The IXTL2X240N055T is a dual N-channel power MOSFET manufactured by IXYS. It features a 55V drain-source breakdown voltage and supports a continuous drain current of 140A. The device exhibits a low on-resistance of 3.3 milliohms, facilitating efficient power switching. It utilizes the ISOPLUSi5-Pak through-hole package for robust thermal management. Key electrical parameters include a maximum power dissipation of 150W and an operating temperature range from -55°C to +175°C.

FET, MOSFET Arrays Feature Summary

• Dual N-channel configuration within a single component
• High current handling capability with low on-resistance
• ISOPLUSi5-Pak package designed for high-power applications

FET, MOSFET Arrays Applications

• Motor control systems
• Power supply circuits
• Industrial automation controllers

FET, MOSFET Arrays Procurement Notes

Verify the specific suffix and package variant against the official IXYS datasheet to ensure compatibility with the target design requirements. Confirm that the component meets all necessary environmental and safety certifications required for the intended application before finalizing procurement decisions.

FET, MOSFET Arrays Selection Notes

Select this component when a dual N-channel topology is required in a through-hole format. The 55V rating and 140A current capacity suit low-voltage, high-current switching tasks. Evaluate the thermal performance of the ISOPLUSi5-Pak package to ensure adequate heat dissipation for the specific load conditions.

FET, MOSFET Arrays Part Context

This part belongs to the IXYS IXTL series of high-power MOSFETs. These devices are engineered for demanding power electronics applications where reliability and thermal stability are critical. The series utilizes advanced silicon technology to achieve low conduction losses and fast switching speeds.

FET, MOSFET Arrays Replacement Considerations

Check for direct substitutes such as the IXTL2x240N055T variant or other dual N-channel MOSFETs with matching 55V/140A ratings and compatible pinout configurations.
