JANTX1N5620/TR

Single Diodes Overview

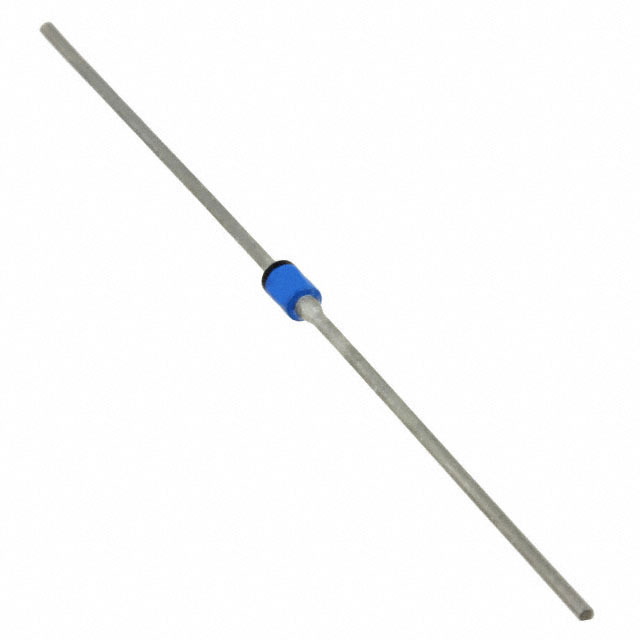

The JANTX1N5620/TR is a single standard recovery rectifier manufactured by Microchip Technology. It features an A-Package-2 through-hole configuration with a maximum repetitive peak reverse voltage of 800 V and a continuous forward current rating of 1 A. The device exhibits a forward voltage drop of 1.3 V at rated current and supports a maximum surge current of 30 A. Reverse leakage current is specified at 500 nA, with a typical recovery time of 2 microseconds. The component operates within a temperature range from -65 °C to +200 °C.

Single Diodes Feature Summary

• High-temperature operation capability up to 200 °C for demanding environments
• Standard recovery characteristics suitable for general-purpose rectification
• Robust surge current handling with 30 A non-repetitive peak rating

Single Diodes Applications

• Military aerospace power supply circuits
• Avionics rectification modules
• High-temperature industrial control systems

Single Diodes Procurement Notes

Verify the JAN prefix indicates military-grade qualification standards required for the specific application environment. Confirm the /TR suffix denotes tape-and-reel packaging compatibility with automated assembly equipment. Ensure the A-Package-2 footprint matches the target PCB layout constraints. Validate that the 800 V reverse voltage rating exceeds the peak inverse voltage present in the circuit design.

Single Diodes Selection Notes

Select this component when high thermal stability above 175 °C is necessary, as standard commercial variants often limit operation to 150 °C or 175 °C. The 800 V blocking voltage provides sufficient margin for higher voltage bus applications compared to lower-rated siblings. Consider the 2 µs recovery time for frequency limitations in switching applications where faster ultra-fast recovery diodes might be preferred.

Single Diodes Part Context

This part belongs to the MIL-STD-1950/38534 qualified JANTX series, representing enhanced reliability levels beyond standard JAN parts. It shares electrical specifications with the commercial 1N5620 but undergoes stricter screening and testing protocols. The JANTX designation ensures compliance with specific military quality assurance requirements for defense and space electronics manufacturing.

Single Diodes Replacement Considerations

Direct functional equivalents include the JAN1N5620 for bulk packaging or the 1N5620/TR for commercial reel options. Verify package compatibility when substituting with non-military grades, as mechanical dimensions may differ slightly despite identical electrical ratings.
