Product Detailed Parameters

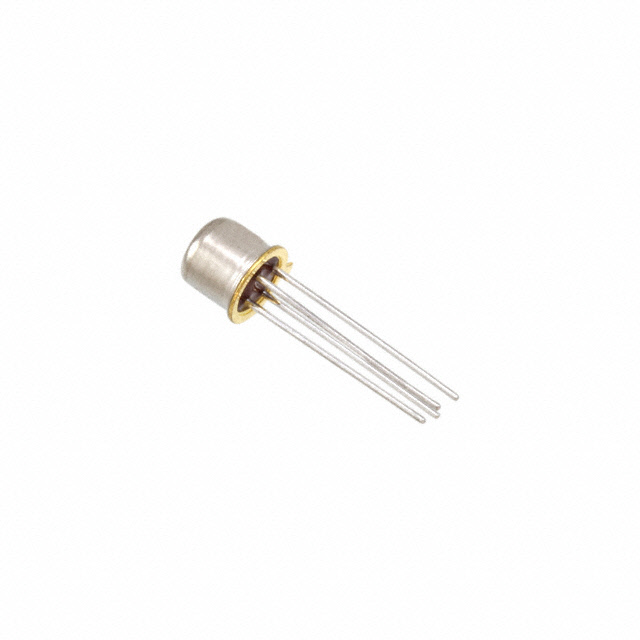

- Description：RF TRANS NPN 15V 500MHZ TO-72
- Series：-
- Mfr：Microsemi Corporation
- Package：Bulk
- Transistor Type：NPN
- Voltage - Collector Emitter Breakdown (Max)：15V
- Frequency - Transition：500MHz
- Noise Figure (dB Typ @ f)：4.5dB @ 450MHz
- Gain：12.5dB ~ 21dB @ 450MHz
- Power - Max：200mW
- DC Current Gain (hFE) (Min) @ Ic, Vce：30 @ 3mA, 1V
- Current - Collector (Ic) (Max)：40mA
- Operating Temperature：-65°C ~ 200°C (TJ)
- Mounting Type：Through Hole
- Package / Case：TO-72-3 Metal Can
- Supplier Device Package：TO-72
- Grade：Military
- Qualification：MIL-PRF-19500/343
Download product information
Overview
The JANTX2N2857 is a silicon NPN RF small-signal bipolar junction transistor (BJT) manufactured by Microsemi. It is designed for ultra-high frequency applications and features hermetic sealing in a ceramic CERSOT-3 package. The device operates with a maximum collector current of 0.04 A and a collector-emitter voltage of 15 V. It exhibits a minimum DC current gain of 30 and supports operating temperatures up to 200 °C. Qualified per MIL-PRF-19500 standards, this component provides high reliability for demanding military and aerospace environments.
Feature Summary
- Hermetically sealed ceramic construction ensures environmental stability
- Qualified for ultra-high frequency band operations
- Supports extended temperature ranges up to 200 °C
Applications
- Military radio frequency amplification circuits
- Aerospace communication systems requiring radiation hardness
- High-reliability signal processing modules
Procurement Notes
Verify the specific qualification level required for your application, as the base part number may correspond to JAN, JANTX, or JANTXV grades. Confirm that the supplier provides documentation proving compliance with MIL-PRF-19500 screening procedures. Ensure the received units match the specified hermetic seal integrity and die inspection standards mandated for this component class.
Selection Notes
Select this component when designing circuits that demand high-frequency performance combined with strict environmental resilience. The CERSOT-3 package requires appropriate mounting techniques to maintain thermal and mechanical integrity. Verify that the 15 V collector-emitter voltage rating aligns with the system's peak operational limits to prevent breakdown during transient events.
Part Context
This transistor belongs to the 2N2857 family, which includes variants such as the 2N2857UBJ, 2N2857UBJX, and 2N2857UBJV. These devices share similar electrical characteristics but differ in their specific military qualification levels and screening requirements. The family is recognized for its consistent performance in high-stress electronic environments.
Replacement Considerations
Direct replacements include the 2N2857UBJX for JANTX level equivalents. Verify pinout compatibility and ensure the substitute meets the same MIL-PRF-19500 qualification standards. Cross-reference thermal resistance values to confirm adequate heat dissipation capabilities in the target assembly.
