JANTXV2N3767

Single Bipolar Transistors Overview

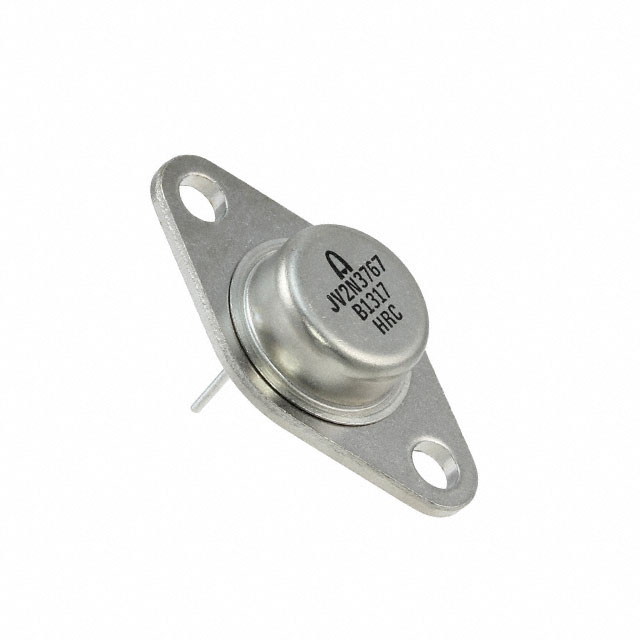

The JANTXV2N3767 is a silicon NPN power bipolar junction transistor manufactured by Microchip Technology. It is designed for high-reliability applications and is available in the TO-66 metal can package. The device features a collector-emitter breakdown voltage of 80 V and supports a maximum continuous collector current of 4 A. Total power dissipation reaches 25 W at a case temperature of +25 °C. The component operates within a temperature range of -65 °C to +200 °C and meets JANTXV qualification standards per MIL-PRF-19500/518.

Single Bipolar Transistors Feature Summary

• Qualified to JANTXV reliability standards under MIL-PRF-19500/518 specifications
• Constructed with silicon NPN technology housed in a hermetic TO-66 metal can
• Engineered for high thermal stability with an operating junction temperature up to +200 °C

Single Bipolar Transistors Applications

• Military aerospace power switching circuits
• High-reliability industrial amplifier stages
• Ruggedized defense electronics systems

Single Bipolar Transistors Procurement Notes

Verify that the specific order includes the JANTXV suffix, which denotes enhanced quality screening compared to standard JAN or JANTX variants. Confirm compliance with MIL-PRF-19500/518 requirements during acquisition. Ensure procurement channels provide traceable documentation for military-grade components. Check for recent Product Change Notifications regarding manufacturing updates.

Single Bipolar Transistors Selection Notes

Select this component when high current handling and robust thermal performance are required in space-constrained metal packages. The TO-66 form factor facilitates efficient heat dissipation through flange mounting. Consider the 80 V rating for moderate voltage applications requiring significant current capacity. Evaluate the +200 °C maximum operating temperature for extreme environment suitability.

Single Bipolar Transistors Part Context

This part belongs to the 2N3767 family of power transistors produced by Microchip Technology. It shares core electrical characteristics with the standard 2N3767 but adheres to stricter military screening protocols. The JANTXV designation indicates a higher level of testing and reliability assurance than lower-tier military classifications.

Single Bipolar Transistors Replacement Considerations

Direct substitutes include JAN2N3767 and JANTX2N3767, provided the specific reliability tier matches the design requirements. Verify pinout compatibility and package dimensions before substitution.
