LB T64G-AACB-59-Z484-20-R33-Z

LED Indication - Discrete Overview

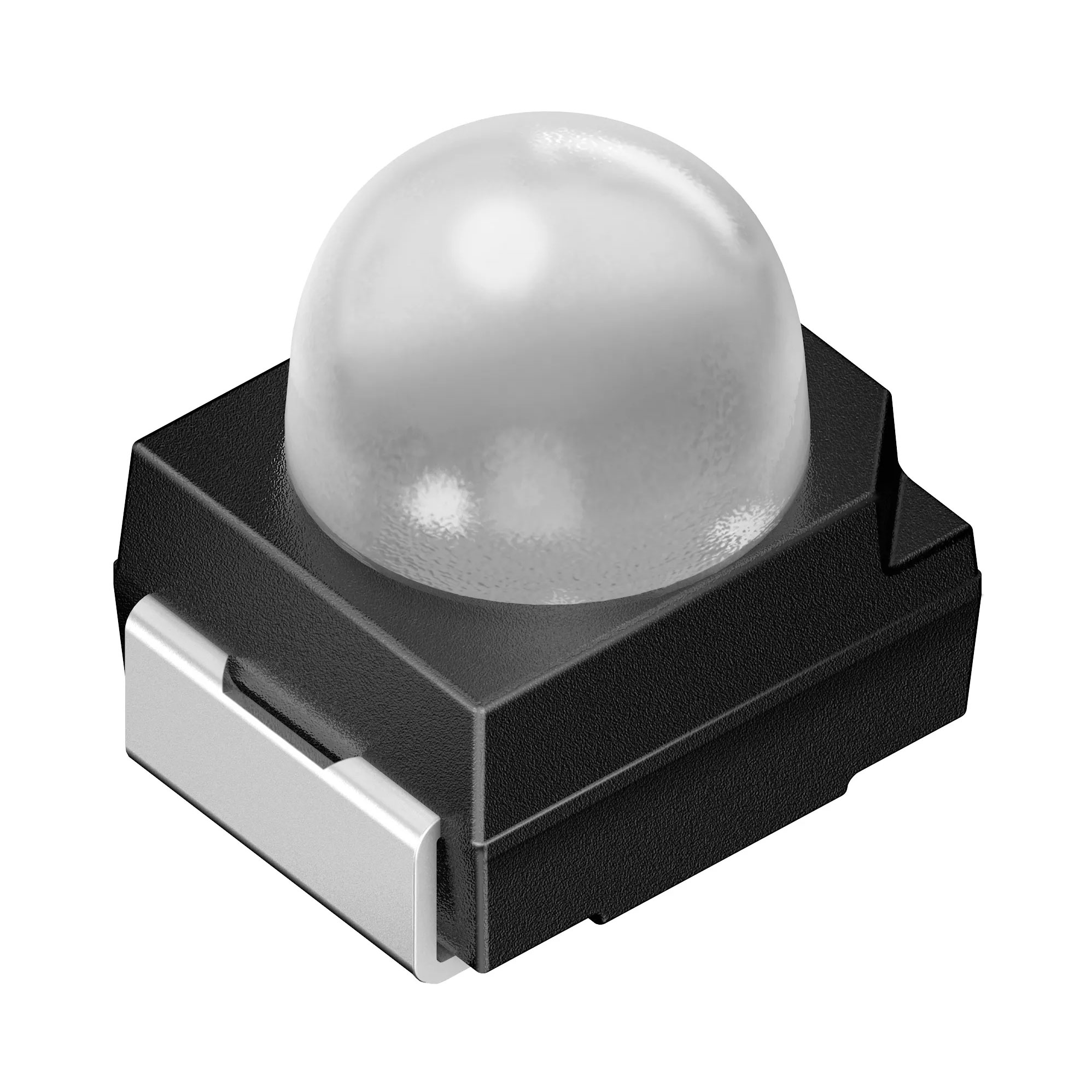

The LB T64G-AACB-59-Z484-20-R33-Z is a blue surface-mount LED from the TOPLED Black series by ams OSRAM. It features a clear lens and operates at a peak wavelength of 462 nm with a dominant wavelength of 469 nm. The component utilizes a standard 2-PLCC package for SMD installation. Typical forward voltage is 3 V when tested at 20 mA. It offers a 30-degree viewing angle and is supplied in tape-and-reel, cut tape, or Digi-Reel formats.

LED Indication - Discrete Feature Summary

• Blue light emission with clear optical lens
• Compact 2-PLCC surface-mount footprint
• Narrow 30-degree beam angle for directed illumination

LED Indication - Discrete Applications

• General indicator lighting
• Electronic status signaling
• Instrument panel backlighting

LED Indication - Discrete Procurement Notes

Verify the specific ordering suffix to ensure correct packaging configuration, as the base part number supports multiple handling options including tape-and-reel, cut tape, and custom reel formats. Confirm that the 2-PLCC package dimensions align with the target PCB layout. Ensure the manufacturer designation matches ams OSRAM AG specifications to guarantee component authenticity and performance consistency.

LED Indication - Discrete Selection Notes

Select this component for applications requiring a compact blue indicator source with a narrow light distribution profile. The 2-PLCC package facilitates automated assembly processes. Verify that the 3 V forward voltage requirement fits within the available drive circuit headroom. Consider the 30-degree viewing angle suitability for direct line-of-sight visibility requirements in the final enclosure design.

LED Indication - Discrete Part Context

This device belongs to the TOPLED Black series, which provides high-brightness discrete LEDs in small surface-mount packages. The series is designed for general-purpose indication tasks where space constraints are critical. The 2-PLCC form factor represents a standard industry footprint compatible with widespread reflow soldering profiles and pick-and-place equipment.

LED Indication - Discrete Replacement Considerations

Consult official cross-reference documentation for equivalent 2-PLCC blue LEDs. Verify matching electrical parameters such as forward voltage and peak wavelength before substitution.
