M22-5320446R

$0.80

Description：CONN HEADER SMD 8POS 2MM
Series：M22
Mfr：Harwin Inc.
Package：Tape & Reel (TR)

SKU:8a3084e32254 Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M22-5320446R is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN HEADER SMD 8POS 2MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M22-5320446R

Description：CONN HEADER SMD 8POS 2MM
Series：M22
Mfr：Harwin Inc.
Package：Tape & Reel (TR)
Connector Type：Header, Cuttable
Contact Type：Male Pin
Pitch - Mating：0.079" (2.00mm)
Number of Positions：8
Number of Rows：2
Row Spacing - Mating：0.079" (2.00mm)
Number of Positions Loaded：All
Style：Board to Board
Shrouding：Unshrouded
Mounting Type：Surface Mount
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.138" (3.50mm)
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：0.059" (1.50mm)
Contact Shape：Square
Contact Finish - Mating：Tin
Contact Finish Thickness - Mating：-
Contact Finish - Post：Tin
Contact Material：Phosphor Bronze
Insulation Material：Polyamide (PA6T), Nylon 6T
Features：-
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：1A per Contact
Voltage Rating：-

Headers, Male Pins datasheet and documents for M22-5320446R

M22-5320446R

Headers, Male Pins Overview

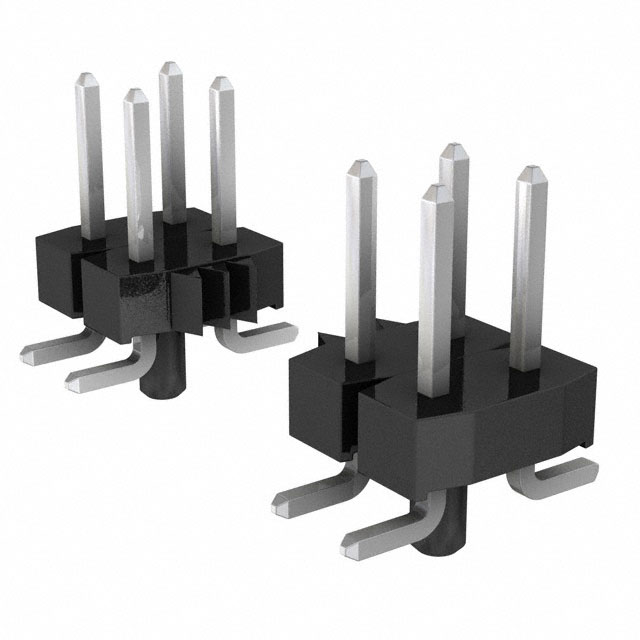

The M22-5320446R is a surface mount header from the Harwin M22 series, featuring an 8-position configuration in a 4+4 dual in-line (DIL) arrangement. It utilizes a 2 mm pitch and includes male pin contacts with a mating length of 3.5 mm. Designed for board-to-board applications, this component supports right-angle installation on printed circuit boards.

Headers, Male Pins Feature Summary

Surface mount technology implementation for automated pick-and-place assembly processes
Dual in-line pin configuration providing compact high-density interconnect solutions
Male pin contact type ensuring reliable board-to-board electrical connections

Headers, Male Pins Applications

Embedded PC systems requiring compact interconnects
Motherboard connections in large electronic systems
Industrial monitoring devices needing reliable surface mount headers

Headers, Male Pins Procurement Notes

Verify the specific suffix 'R' against official datasheets to confirm reel packaging or RoHS compliance status. Ensure compatibility with standard SMT reflow profiles. Cross-reference the 4+4 DIL layout with PCB footprint drawings to prevent alignment errors during assembly.

Headers, Male Pins Selection Notes

Select this component when surface mount assembly is required for 2 mm pitch applications. The 8-position count suits moderate density needs. Verify that the 3.5 mm mating length aligns with the target connector housing depth. Confirm right-angle orientation fits within the mechanical enclosure constraints.

Headers, Male Pins Part Context

This part belongs to the M22 series, a line of industrial standard connectors designed for high reliability. The series offers both through-hole and surface mount options, catering to diverse manufacturing requirements while maintaining consistent 2 mm spacing standards across the product family.
