M22-5430905

Headers, Male Pins Overview

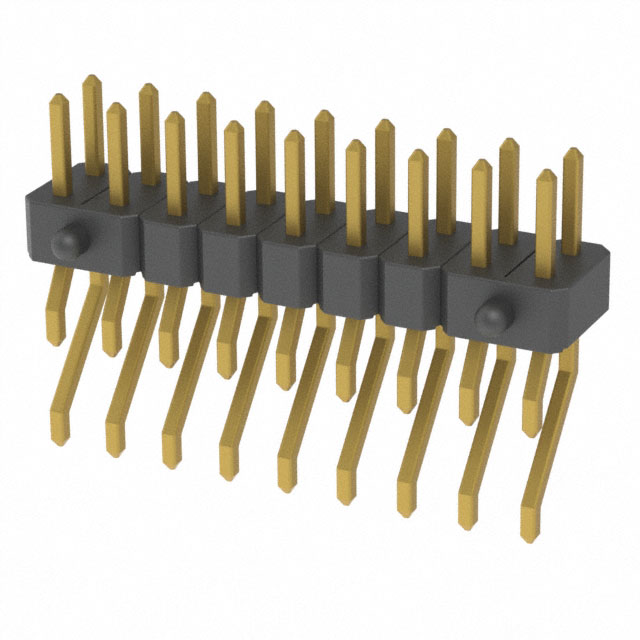

The M22-5430905 is a surface mount header connector from the Harwin M22 series, designed for right-angle board-to-board applications. It features an 18-position configuration with a 2.00mm (0.079") pitch and dual rows. The connector utilizes square male pins made of phosphor bronze with gold plating for reliable mating. Constructed with black polyamide insulation rated UL94 V-0, it supports a working temperature range of -40°C to +105°C and carries RoHS3 compliance.

Headers, Male Pins Feature Summary

• Right-angle surface mount design for compact PCB integration
• Gold-plated phosphor bronze contacts ensure stable electrical performance
• UL94 V-0 rated polyamide insulation provides flame resistance
• Push-pull locking mechanism secures mating connections

Headers, Male Pins Applications

• High-density electronic assemblies requiring space efficiency
• Industrial control systems with vibration exposure
• Automotive electronics modules
• Consumer device internal interconnects

Headers, Male Pins Procurement Notes

Verify the specific suffix against official datasheets to confirm pin count and orientation. Ensure compatibility with mating socket specifications regarding contact length and insulation height. Confirm RoHS3 status if environmental compliance is mandatory for the target market. Cross-reference the manufacturer part number to avoid confusion with similar series variants.

Headers, Male Pins Selection Notes

Select this component when right-angle surface mounting is required for high-density layouts. The 2.00mm pitch allows for significant I/O density compared to standard spacing options. Verify that the PCB copper pad layout matches the specified SMT footprint dimensions. Consider the thermal profile requirements during reflow soldering relative to the polymer material limits.

Headers, Male Pins Part Context

This component belongs to the M22 series, characterized by a 2.00mm pitch and robust mechanical locking. It serves as a male header variant within the broader Harwin interconnect portfolio. The series is engineered for demanding environments, offering durability through its push-pull retention system and high-temperature resistant materials suitable for automated assembly processes.

Headers, Male Pins Replacement Considerations

M22-5431905

Headers, Male Pins FAQ

What is the maximum operating temperature for this connector?

The connector operates reliably within a temperature range of -40°C to +105°C.

Does the M22-5430905 include a protective cover?

No, this specific model is supplied without a cover or shield.
