MAX38656AEVK#WLP

Voltage Regulators - DC DC Switching Regulators Overview

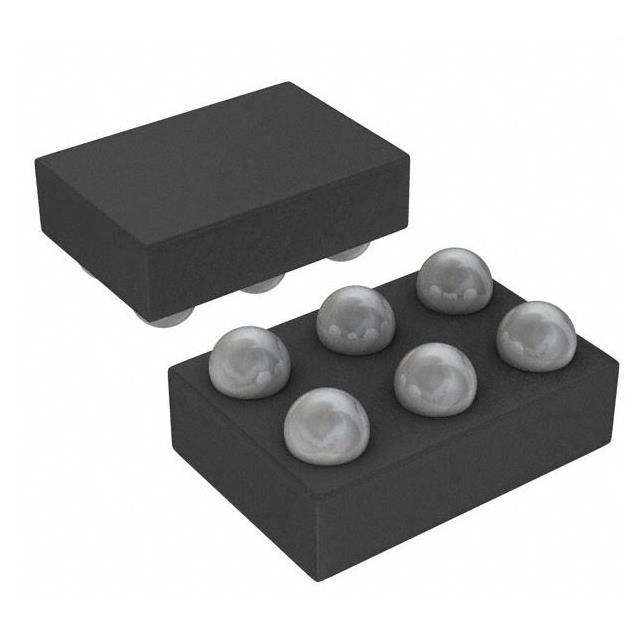

The MAX38656AEVK#WLP is an evaluation kit for the NanoPower buck converter, designed to demonstrate performance in a compact 6-WLP (1.58x0.94mm) package. It supports input voltages from 1.8V and provides a positive adjustable output starting at 0.7V with a 1.5A capability. This development tool facilitates rapid prototyping and verification of DC-DC switching regulator functionality for space-constrained applications.

Voltage Regulators - DC DC Switching Regulators Feature Summary

• Evaluates NanoPower buck converter technology
• Supports ultra-compact WLP packaging
• Demonstrates low-voltage operation capabilities

Voltage Regulators - DC DC Switching Regulators Applications

• Evaluation of NanoPower buck converter performance
• Prototyping for space-constrained portable devices
• Verification of low-voltage DC-DC switching regulator designs

Voltage Regulators - DC DC Switching Regulators Procurement Notes

Verify component authenticity through authorized Analog Devices distributors. Confirm package type matches project requirements. Check datasheet for latest revision status. Ensure compatibility with intended input voltage range. Validate evaluation board specifications against design needs before procurement.

Voltage Regulators - DC DC Switching Regulators Selection Notes

Select this kit for evaluating NanoPower converter efficiency in minimal footprint designs. Consider the 6-WLP package size for tight spatial constraints. Verify input voltage compatibility within the 1.8V minimum range. Assess output adjustability requirements against the 0.7V minimum specification. Evaluate thermal management needs for high-current applications.

Voltage Regulators - DC DC Switching Regulators Part Context

This evaluation kit belongs to the NanoPower family of ultra-low quiescent current converters. It complements other Maxim Integrated power management solutions by providing a reference design for high-efficiency step-down conversion. The WLP package enables integration into mobile and wearable electronics where board space is critical.

Voltage Regulators - DC DC Switching Regulators Replacement Considerations

Consult official Analog Devices documentation for direct pin-compatible alternatives. Verify electrical parameters match original specifications. Review package dimensions for mechanical fit. Confirm thermal characteristics align with system requirements.
