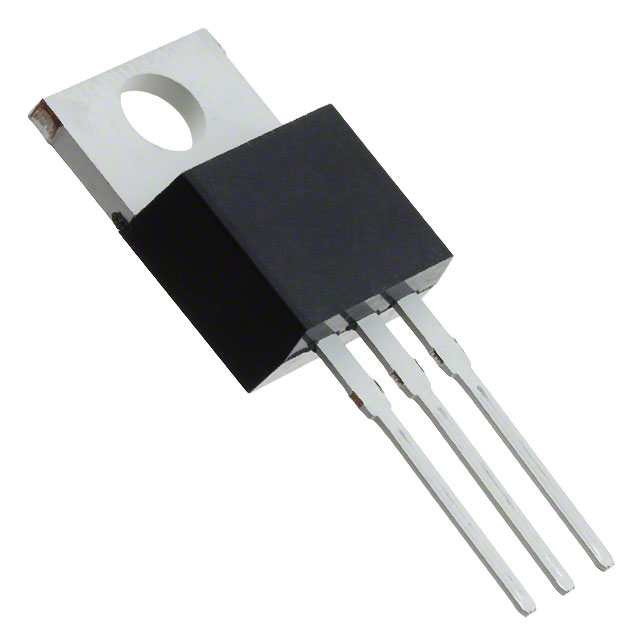

MBR20100CTE3/TU

$0.87

Description：DIODE ARRAY 100V 20A TO-220AB
Series：-

SKU:e1df96fb9ae6 Category: Diode Arrays Brand: Microchip Technology

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

MBR20100CTE3/TU is listed in the Diode Arrays range at ChipApex. The manufacturer field lists Microchip Technology. Its product description is DIODE ARRAY 100V 20A TO-220AB. Review the specifications below when checking this part for your BOM.

Diode Arrays specifications for MBR20100CTE3/TU

Description：DIODE ARRAY 100V 20A TO-220AB
Series：-
Mfr：Microchip Technology
Package：Tube
Diode Configuration：1 Pair Common Cathode
Technology：-
Voltage - DC Reverse (Vr) (Max)：100 V
Current - Average Rectified (Io) (per Diode)：20A
Voltage - Forward (Vf) (Max) @ If：850 mV @ 10 A
Speed：-
Reverse Recovery Time (trr)：-
Current - Reverse Leakage @ Vr：-
Operating Temperature - Junction：-55°C ~ 175°C
Mounting Type：Through Hole
Package / Case：TO-220AB
Supplier Device Package：TO-220AB
Grade：-
Qualification：-

Diode Arrays datasheet and documents for MBR20100CTE3/TU

MBR20100CTE3/TU

Diode Arrays Overview

The MBR20100CTE3/TU is a dual common cathode Schottky rectifier manufactured by Microchip Technology. It utilizes silicon technology and is housed in a TO-220AB-3 through-hole package. The device supports an average forward current of 20 A and a repetitive peak reverse voltage of 100 V. Key electrical parameters include a maximum forward voltage of 0.88 V, a surge forward current rating of 150 A, and a maximum reverse leakage current of 100 uA. It operates within a junction temperature range of -65°C to +150°C.

Diode Arrays Feature Summary

Dual common cathode configuration for efficient center-tapped full-wave rectification
Schottky barrier construction eliminates minority carrier storage effects
Low forward voltage drop reduces conduction losses and heat generation
High thermal stability with a maximum operating junction temperature of 150°C

Diode Arrays Applications

Center-tapped full-wave rectification in power supplies
Free-wheeling diodes in DC-to-DC converters
Reverse polarity protection circuits
Output rectification in high-frequency switching power supplies

Diode Arrays Procurement Notes

Verify the specific suffix TU against official Microchip documentation to confirm the tube packaging format. Confirm RoHS compliance status as indicated in the datasheet. Ensure the TO-220AB-3 lead form matches the target PCB footprint requirements before finalizing procurement decisions.

Diode Arrays Selection Notes

Select this component when a dual Schottky rectifier is required for low-voltage, high-current applications. The 100V rating suits systems where output voltages remain below this threshold. Consider the TO-220AB-3 package for applications requiring robust through-hole mounting and effective heat dissipation via a heatsink.

Diode Arrays Part Context

This part belongs to the MBR series of Schottky rectifiers from Microchip Technology. It serves as a solid-state alternative to traditional PN junction diodes in power conversion stages. The dual common cathode design integrates two independent rectifying elements into a single package, simplifying circuit layout and improving thermal coupling between the diodes.
