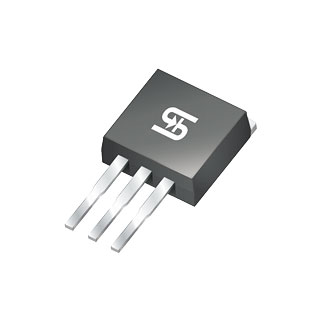

MBRI30100CT is listed in the Diode Arrays range at ChipApex. The manufacturer field lists Taiwan Semiconductor Corporation. Its product description is DIODE ARRAY SCHOT 100V 30A I2PAK. Review the specifications below when checking this part for your BOM.
Diode Arrays specifications for MBRI30100CT
- Description：DIODE ARRAY SCHOT 100V 30A I2PAK
- Series：-
- Mfr：Taiwan Semiconductor Corporation
- Package：Tube
- Diode Configuration：1 Pair Common Cathode
- Technology：Schottky
- Voltage - DC Reverse (Vr) (Max)：100 V
- Current - Average Rectified (Io) (per Diode)：30A
- Voltage - Forward (Vf) (Max) @ If：940 mV @ 30 A
- Speed：Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr)：-
- Current - Reverse Leakage @ Vr：200 µA @ 100 V
- Operating Temperature - Junction：-55°C ~ 150°C
- Mounting Type：Through Hole
- Package / Case：TO-262-3 Long Leads, I2PAK, TO-262AA
- Supplier Device Package：I2PAK
- Grade：-
- Qualification：-
Diode Arrays datasheet and documents for MBRI30100CT
Diode Arrays Overview
The MBRI30100CT is a Schottky barrier rectifier manufactured by Taiwan Semiconductor Corporation. It features a common cathode configuration with two internal elements housed in an ITO-220AB package. The device is designed for high-efficiency power conversion applications requiring low forward voltage drop and high surge capacity.
Diode Arrays Feature Summary
- Utilizes metal silicon junction technology for majority carrier conduction, ensuring low power loss and high efficiency.
- Incorporates guard-ring design for enhanced overvoltage protection and robust performance under stress conditions.
- Constructed with plastic material classified as Underwriters Laboratory Flammability Class 94V-0.
Diode Arrays Applications
- Low voltage, high frequency inverters
- Free wheeling diode circuits
- Polarity protection applications
Diode Arrays Procurement Notes
Verify the specific suffix codes against official Taiwan Semiconductor documentation to confirm exact electrical tolerances and packaging variations. Ensure the component matches the required thermal dissipation capabilities for the intended circuit design before procurement.
Diode Arrays Selection Notes
Select this component for designs prioritizing high current handling and reduced switching losses. Confirm that the operating temperature range aligns with the system's thermal management strategy, particularly regarding the maximum junction temperature limits specified in the datasheet.
Diode Arrays Part Context
This part belongs to the MBRF series of isolated Schottky barrier rectifiers from Taiwan Semiconductor. These devices are engineered for general-purpose power supply applications where efficiency and reliability are critical parameters for system performance.
Diode Arrays Replacement Considerations
Cross-reference with other MBRF series variants such as MBRF30100CT or MBRF30100PT for pin-compatible alternatives. Verify that substitute parts maintain identical voltage ratings and current capacities to ensure circuit integrity without modification.
