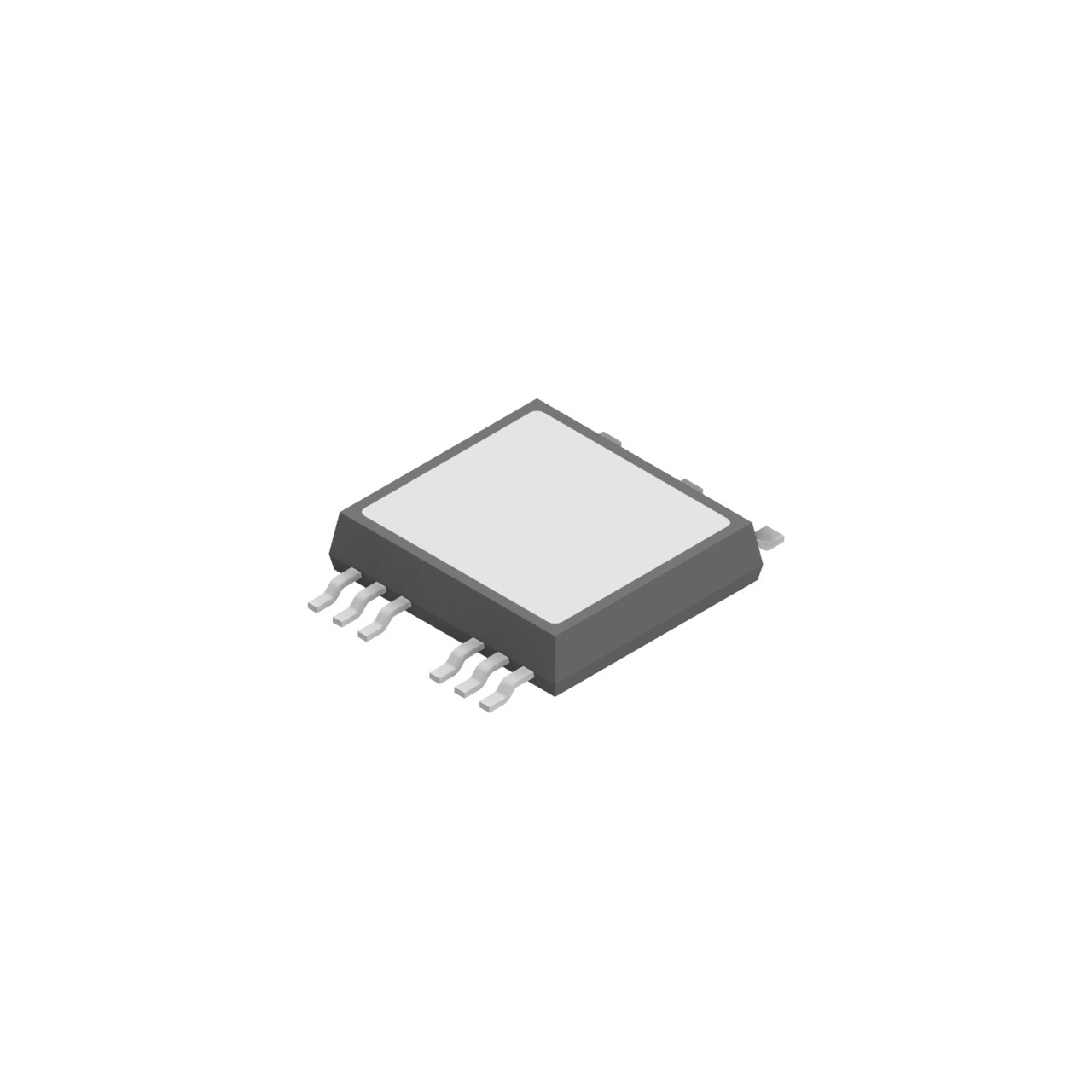

MCB40P1200LB-TUB is listed in the FET, MOSFET Arrays range at ChipApex. The manufacturer field lists IXYS. Its product description is MOSFET 2N-CH 1200V 58A SMPD. Review the specifications below when checking this part for your BOM.
FET, MOSFET Arrays specifications for MCB40P1200LB-TUB
- Description：MOSFET 2N-CH 1200V 58A SMPD
- Series：-
- Mfr：IXYS
- Package：Tube
- Technology：Silicon Carbide (SiC)
- Configuration：2 N-Channel (Dual)
- FET Feature：-
- Drain to Source Voltage (Vdss)：1200V (1.2kV)
- Current - Continuous Drain (Id) @ 25°C：58A
- Rds On (Max) @ Id, Vgs：-
- Vgs(th) (Max) @ Id：-
- Gate Charge (Qg) (Max) @ Vgs：-
- Input Capacitance (Ciss) (Max) @ Vds：-
- Power - Max：-
- Operating Temperature：-
- Mounting Type：Surface Mount
- Package / Case：9-SMD Power Module
- Supplier Device Package：SMPD
- Grade：-
- Qualification：-
FET, MOSFET Arrays datasheet and documents for MCB40P1200LB-TUB
FET, MOSFET Arrays Overview
The MCB40P1200LB-TUB is a silicon carbide (SiC) MOSFET phase-leg module manufactured by IXYS. It features an SMPD-B package and provides a continuous drain current of 40 A with a drain-source breakdown voltage of 1200 V. The component exhibits a low on-resistance of 25 mOhms, facilitating efficient power conversion in high-voltage applications.
FET, MOSFET Arrays Feature Summary
- Utilizes silicon carbide technology for enhanced thermal performance and efficiency
- Configured as a dual N-channel phase-leg module for bridge circuits
- Designed for high-temperature operation up to +175°C junction temperature
FET, MOSFET Arrays Applications
- High-frequency DC-DC converters
- Motor drive inverters
- Uninterruptible power supply systems
FET, MOSFET Arrays Procurement Notes
Verify the specific suffix LB-TUB against official datasheets to confirm packaging and tape-and-reel specifications. Ensure compatibility with required gate drive voltages and thermal management solutions before integration into final designs.
FET, MOSFET Arrays Selection Notes
Select this component for applications requiring high switching speeds and reduced conduction losses at elevated temperatures. Compare thermal resistance values against system constraints and ensure adequate heatsinking capabilities are available for the SMPD-B form factor.
FET, MOSFET Arrays Part Context
This part belongs to IXYS' SiC MOSFET portfolio, targeting next-generation power electronics. It replaces traditional silicon devices in demanding environments where reliability and efficiency are critical. The SMPD-B package offers compact integration for modern industrial and automotive systems.
FET, MOSFET Arrays Replacement Considerations
Consult official substitution guides for equivalent SiC phase-leg modules from IXYS or other manufacturers. Verify pinout compatibility and electrical ratings when considering alternatives.
