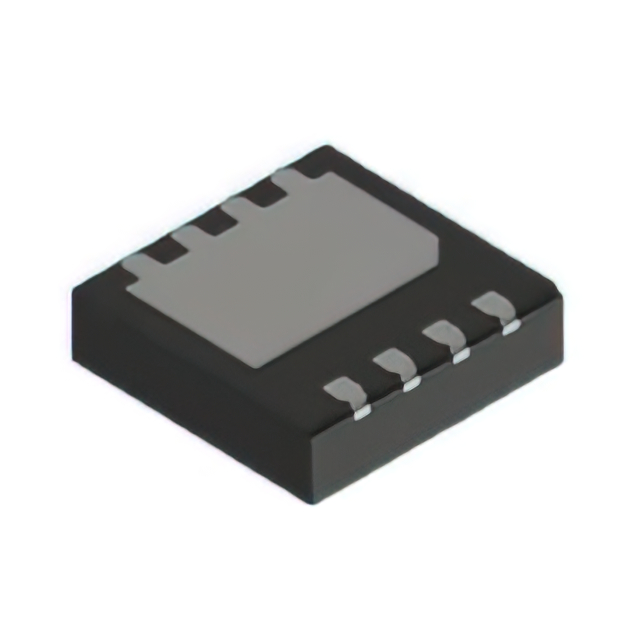

MCGWF45P04HE3-TP

$2.37

Description：POWER MOSFET
Series：-
Mfr：MCC (Micro Commercial Components)
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:7d36f7acdefe Category: Single FETs, MOSFETs Brand: MCC (Micro Commercial Components)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

MCGWF45P04HE3-TP is listed in the Single FETs, MOSFETs range at ChipApex. The manufacturer field lists MCC (Micro Commercial Components). Its product description is POWER MOSFET. Review the specifications below when checking this part for your BOM.

Single FETs, MOSFETs specifications for MCGWF45P04HE3-TP

Description：POWER MOSFET
Series：-
Mfr：MCC (Micro Commercial Components)
Package：Tape & Reel (TR),Cut Tape (CT)
FET Type：P-Channel
Technology：MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)：40 V
Current - Continuous Drain (Id) @ 25°C：45A (Tc)
Drive Voltage (Max Rds On, Min Rds On)：4.5V, 10V
Rds On (Max) @ Id, Vgs：13mOhm @ 10A, 10V
Vgs(th) (Max) @ Id：3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs：73.4 nC @ 10 V
Vgs (Max)：±20V
Input Capacitance (Ciss) (Max) @ Vds：3136 pF @ 25 V
FET Feature：-
Power Dissipation (Max)：41.7W (Tj)
Operating Temperature：-55°C ~ 150°C (TJ)
Grade：Automotive
Qualification：AEC-Q101
Mounting Type：Surface Mount
Supplier Device Package：DFN3333-8
Package / Case：8-PowerWDFN

Single FETs, MOSFETs datasheet and documents for MCGWF45P04HE3-TP

MCGWF45P04HE3-TP

Single FETs, MOSFETs Overview

The MCGWF45P04HE3-TP is a P-channel MOSFET utilizing Trench Power LV technology in a DFN3333-8(SWF) package. It features a drain-source voltage of -40V and a continuous drain current of -41.7A at TC=25°C, with a maximum pulsed drain current of -180A. The device exhibits a low on-resistance of 10mΩ to 17mΩ depending on gate drive conditions. Key electrical parameters include a gate threshold voltage of -1V to -3V, total gate charge of 73.4nC, and input capacitance of 3136pF. Thermal performance includes a junction-to-case resistance of 3°C/W and a junction-to-ambient resistance of 50°C/W.

Single FETs, MOSFETs Feature Summary

AEC-Q101 qualified for automotive reliability standards
Trench Power LV MOSFET technology for optimized performance
Moisture Sensitivity Level 1 classification
Halogen-free green device with UL 94 V-0 flammability rating

Single FETs, MOSFETs Applications

Automotive power management systems
Low voltage DC-DC converter circuits
Motor control applications requiring P-channel switching

Single FETs, MOSFETs Procurement Notes

Verify the authenticity of the MCGWF45P04HE3-TP component by purchasing exclusively from Micro Commercial Components or their authorized distributors to ensure traceability and quality. Confirm that the ordering suffix indicates RoHS compliance and tape-and-reel packaging containing 5000 pieces per reel. Ensure the procurement specifications match the required DFN3333-8(SWF) package dimensions and thermal characteristics for your specific design implementation.

Single FETs, MOSFETs Selection Notes

Select this component when a P-channel MOSFET with AEC-Q101 qualification is required for automotive-grade designs. The DFN3333-8(SWF) package offers a compact footprint suitable for space-constrained PCB layouts. Consider the 3°C/W junction-to-case thermal resistance for heatsinking requirements and verify that the -40V breakdown voltage aligns with the system's operating voltage headroom.

Single FETs, MOSFETs Part Context

This part belongs to the MCC P-channel MOSFET family designed for low-voltage applications. It utilizes trench technology to achieve low on-resistance within a surface-mount DFN3333-8(SWF) package. The device is engineered for high efficiency and reliability in environments demanding automotive-grade certification and robust thermal performance.
