MCIMX535DVP1C2

Microprocessors Overview

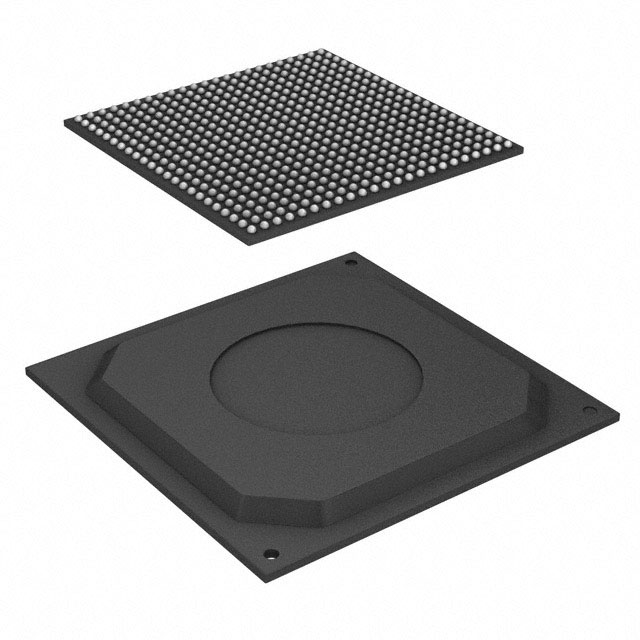

The MCIMX535DVP1C2 is a 32-bit multimedia application processor from NXP Semiconductors, belonging to the i.MX 537 series. It integrates an ARM Cortex-A8 core with a maximum clock frequency of 1 GHz. The device utilizes a TEPBGA-529 package and operates within a voltage range of 900 mV to 1.35 V. It supports DDR2, DDR3, LPDDR2, and LVDDR2 memory types. The processor includes 32 kB L1 instruction and data caches, a 256 kB L2 cache, and interfaces such as Ethernet, GPIO, I2C, SPI, UART, and USB.

Microprocessors Feature Summary

• Multimedia processing capabilities driven by ARM Cortex-A8 core with Neon SIMD and vector floating-point support
• Integrated dual independent display interfaces supporting LCD controllers and CMOS sensors
• Hardware security features including secure boot, digital rights management, and information encryption
• Flexible connectivity via multiple high-speed interfaces including USB host, MMC/SDIO, and Ethernet

Microprocessors Applications

• Multimedia applications
• Portable devices requiring high MIPS performance
• Systems utilizing dynamic voltage and frequency scaling for power efficiency

Microprocessors Procurement Notes

Verify the specific suffix 'P1' against official NXP documentation to confirm it denotes the Rev 2.1 Commercial grade variant. Ensure compatibility with required memory types (DDR2/LVDDR2-800, LPDDR2-800, or DDR3-800) and interface configurations. Confirm RoHS compliance status through the manufacturer's datasheet before procurement.

Microprocessors Selection Notes

Select this component for designs requiring a single-core ARM Cortex-A8 solution with integrated multimedia acceleration. Consider the 1 GHz operating speed and extensive peripheral set including dual displays and multiple USB ports. Evaluate thermal requirements given the -20°C to +85°C operating temperature range and the TEPBGA-529 package constraints.

Microprocessors Part Context

This part is part of the i.MX 53xD processor family, succeeding the i.MX51 with improved performance and power efficiency. It is designed for portable applications demanding increased OS MIPS and gaming capabilities. The architecture supports various external storage devices and provides smart speed technology for power management across active and low-power modes.

Microprocessors Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material.
