MCP3562RT-E/NC

Analog To Digital Converters (ADC) Overview

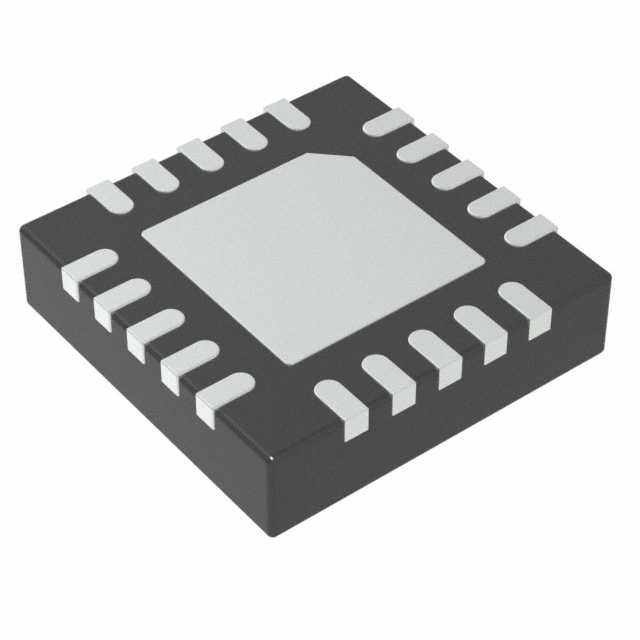

The MCP3562RT-E/NC is a dual-channel, 24-bit Delta-Sigma Analog-to-Digital Converter (ADC) manufactured by Microchip Technology. It features programmable data rates up to 153.6 ksps and analog gains ranging from 0.33x to 64x. The device operates with an analog supply voltage of 2.7V to 3.6V and a digital supply voltage of 1.8V to 3.6V. Key performance metrics include a typical Signal-to-Noise and Distortion Ratio (SINAD) of 106.7 dB and a Spurious-Free Dynamic Range (SFDR) of 120 dBc at 4800 SPS with unity gain. It integrates an internal 2.4V voltage reference, temperature sensor, and burnout current sources within a compact 20-lead UQFN package.

Analog To Digital Converters (ADC) Feature Summary

• Dual-channel input configuration supporting differential or single-ended signals
• 24-bit resolution with RMS effective resolution up to 23.3 bits
• Integrated internal 2.4V voltage reference with selectable drift characteristics
• Advanced security features including 16-bit CRC for SPI communications and register map locking

Analog To Digital Converters (ADC) Applications

• Precision sensor transducers and transmitters for pressure, strain, flow, and force measurement
• Factory automation and process control systems
• Portable instrumentation requiring high accuracy
• Temperature measurement applications utilizing the internal sensor

Analog To Digital Converters (ADC) Procurement Notes

Verify the specific ordering suffix against the manufacturer's documentation to confirm package type and temperature range. Ensure that the selected variant matches the required pinout and thermal specifications for the intended PCB layout. Cross-reference the datasheet revision to confirm electrical characteristics align with design requirements.

Analog To Digital Converters (ADC) Selection Notes

Select this component when a dual-channel high-resolution ADC is required. Compare channel count with MCP3561R (single channel) and MCP3564R (quad channel). Consider the internal voltage reference and oscillator availability if external components are to be minimized. Verify power supply constraints match the 2.7V-3.6V AVDD and 1.8V-3.6V DVDD ranges.

Analog To Digital Converters (ADC) Part Context

This part belongs to the MCP3561/2/4R family of 24-bit Delta-Sigma ADCs. The '2' in the model number indicates a dual-channel architecture, distinguishing it from the single-channel MCP3561R and quad-channel MCP3564R. All variants share similar electrical characteristics and interface protocols but differ in input channel count and pin assignments.

Analog To Digital Converters (ADC) Replacement Considerations

Direct substitutes within the same family include MCP3561RT-E/NC for single-channel applications and MCP3564RT-E/NC for quad-channel requirements. Ensure pin compatibility and software register mapping remain consistent across the family during substitution.
