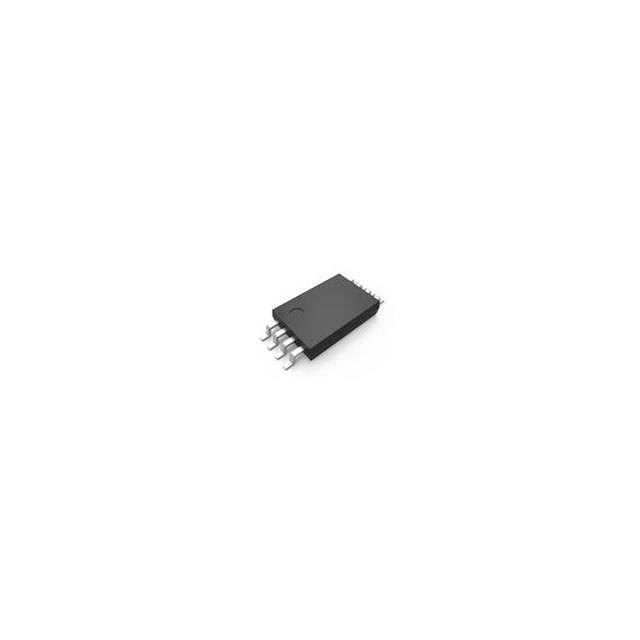

MCS8804-TP

Description：MOSFET 2N-CH 20V 8A 8TSSOP
Series：-

SKU:d55065d73d8d Category: FET, MOSFET Arrays Brand: MCC (Micro Commercial Components)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

MCS8804-TP is listed in the FET, MOSFET Arrays range at ChipApex. The manufacturer field lists MCC (Micro Commercial Components). Its product description is MOSFET 2N-CH 20V 8A 8TSSOP. Review the specifications below when checking this part for your BOM.

FET, MOSFET Arrays specifications for MCS8804-TP

Description：MOSFET 2N-CH 20V 8A 8TSSOP
Series：-
Mfr：MCC (Micro Commercial Components)
Package：Tape & Reel (TR)
Technology：MOSFET (Metal Oxide)
Configuration：2 N-Channel (Dual)
FET Feature：-
Drain to Source Voltage (Vdss)：20V
Current - Continuous Drain (Id) @ 25°C：8A
Rds On (Max) @ Id, Vgs：13mOhm @ 8A, 10V
Vgs(th) (Max) @ Id：1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs：17.9nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds：1800pF @ 10V
Power - Max：-
Operating Temperature：-55°C ~ 150°C (TJ)
Mounting Type：Surface Mount
Package / Case：8-TSSOP (0.173", 4.40mm Width)
Supplier Device Package：8-TSSOP
Grade：-
Qualification：-

FET, MOSFET Arrays datasheet and documents for MCS8804-TP

MCS8804-TP

FET, MOSFET Arrays Overview

The MCS8804-TP is a dual N-channel MOSFET utilizing advanced trench process technology. It features a 20 V drain-source voltage rating and an 8 A continuous drain current capability. The device offers low on-resistance, with typical values of 13 mΩ at VGS=10V/ID=8A and 14 mΩ at VGS=4.5V/ID=5A. Operating junction temperature ranges from -55°C to +150°C. The component is housed in a TSSOP-8 package.

FET, MOSFET Arrays Feature Summary

Advanced trench MOSFET process technology for optimized performance
Low gate charge characteristics for efficient switching
Epoxy material meets UL 94 V-0 flammability rating

FET, MOSFET Arrays Applications

DC-DC converter circuits
Power management modules
Motor control applications

FET, MOSFET Arrays Procurement Notes

Verify the specific ordering suffix when purchasing. The standard part number includes the -TP designation. An optional -HF suffix indicates a halogen-free variant. Ensure procurement channels are authorized distributors to guarantee genuine components and full traceability as per manufacturer guidelines.

FET, MOSFET Arrays Selection Notes

Select this component for applications requiring a compact dual N-channel configuration. The low on-resistance supports high-efficiency power conversion. Verify that the required gate drive voltage aligns with the specified thresholds for optimal RDS(ON) performance. Consider thermal management requirements given the operating temperature range.

FET, MOSFET Arrays Part Context

This component belongs to the Micro Commercial Components discrete semiconductor portfolio. It serves as a dual-switch solution within a single surface-mount package. The design targets space-constrained power electronics where efficiency and thermal stability are critical operational parameters.
