Product Detailed Parameters
- Description：IGBT MOD 1200V 105A 368W
- Series：-
- Mfr：Littelfuse Inc.
- Package：Bulk
- IGBT Type：Trench Field Stop
- Configuration：Three Phase Inverter
- Vce(on) (Max) @ Vge, Ic：1.7V @ 15V, 75A
- Input：Standard
- NTC Thermistor：Yes
- Operating Temperature：-40°C ~ 125°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：Module
- Voltage - Collector Emitter Breakdown (Max)：1200 V
- Current - Collector (Ic) (Max)：105 A
- Power - Max：368 W
- Current - Collector Cutoff (Max)：1 mA
- Input Capacitance (Cies) @ Vce：5.3 nF @ 25 V
Download product information
Overview

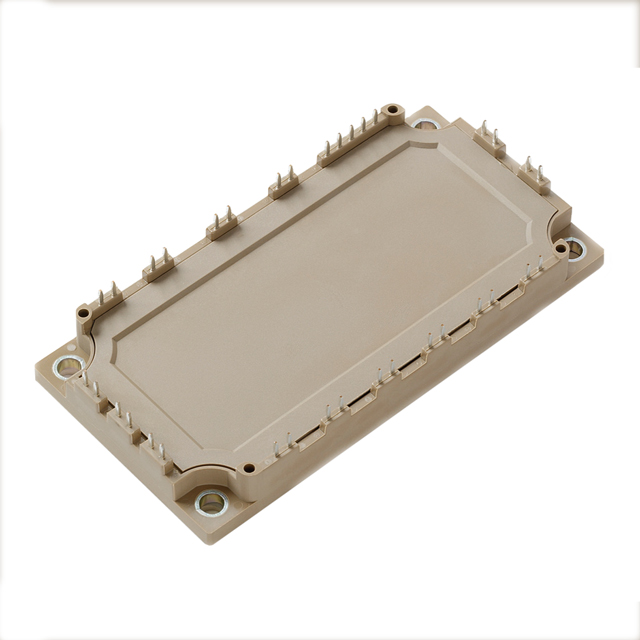

The MG1275W-XN2MM is a Trench Field Stop Insulated Gate Bipolar Transistor (IGBT) module manufactured by Littelfuse Inc. Designed for three-phase inverter applications, this power module features a 1200 V collector-emitter voltage and a continuous collector current rating of 75 A. The device utilizes IGBT3 chip technology with Trench and Field Stop structures to achieve low saturation voltage and a positive temperature coefficient. It is housed in a chassis mount package configuration suitable for high-power AC motor control systems.
Feature Summary
- Utilizes IGBT3 chip technology incorporating Trench and Field Stop structures
- Provides low saturation voltage characteristics
- Exhibits a positive temperature coefficient for stable operation
- Offers a high level of integration within the module design
Applications
- Three-phase inverter circuits
- AC motor control systems
Procurement Notes
Verify the specific ordering suffix against official Littelfuse documentation to ensure correct pinout and thermal interface specifications. Confirm RoHS compliance status as indicated in the latest datasheet revision. Cross-reference the part number with authorized distributors to validate authenticity and supply chain integrity before procurement.
Selection Notes
Select this module for applications requiring robust three-phase inversion capabilities with high voltage tolerance. The positive temperature coefficient aids in parallel operation stability. Ensure the chassis mount form factor aligns with the mechanical constraints of the target enclosure and cooling infrastructure.
Part Context
This component belongs to the MG1275W series of IGBT modules from Littelfuse Inc., which are engineered for industrial power conversion. The series typically supports various voltage and current ratings tailored for medium-power drive applications. The XN2MM suffix denotes specific internal configuration and packaging details within this product family.
Replacement Considerations
Consult official Littelfuse substitution guides for compatible alternatives. Verify electrical parameters and pin compatibility when considering cross-references.
