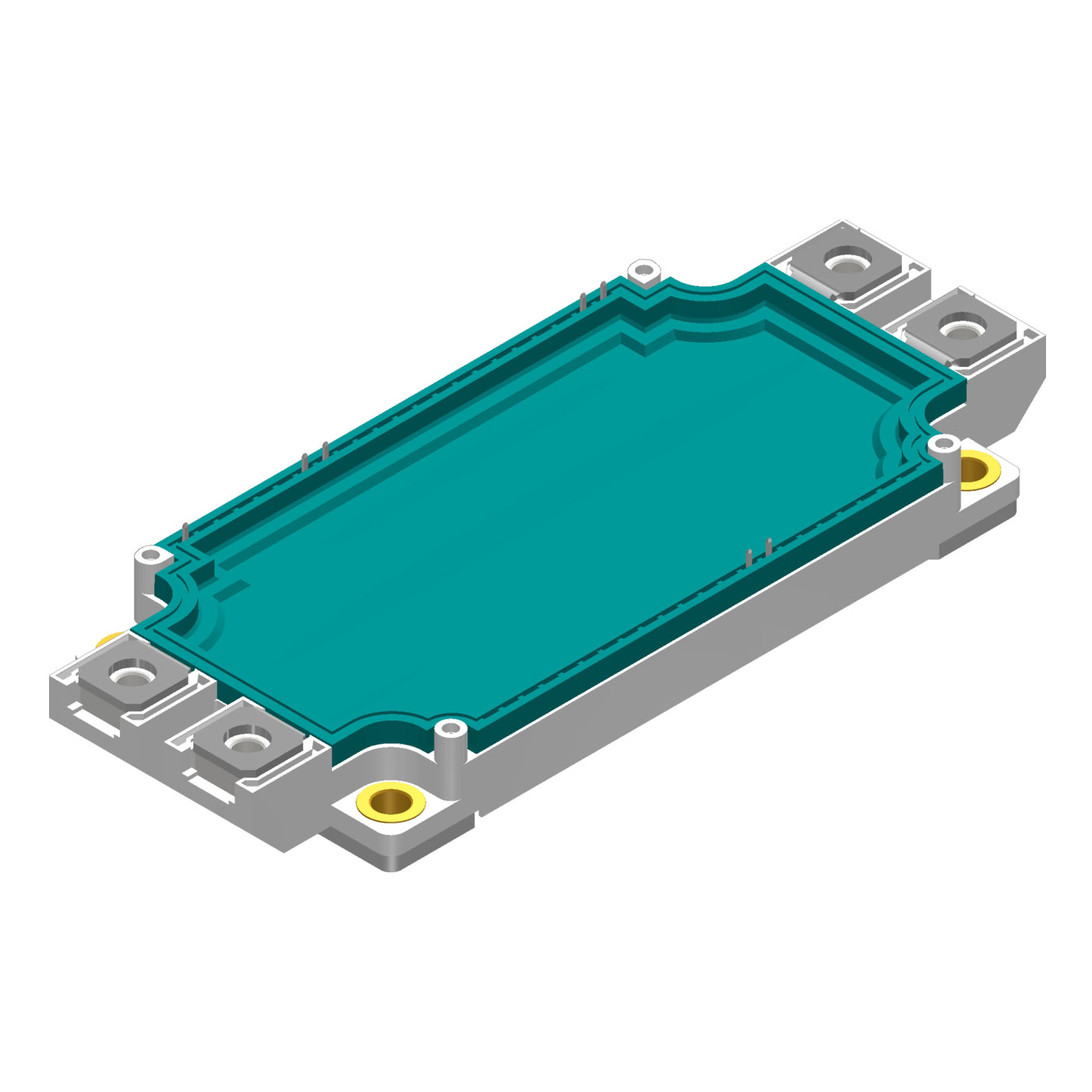

MIXA450PF1200TSF

Description：IGBT MOD 1200V 650A 2100W
Series：-

SKU:d698e9c98b6c Category: IGBT Modules Brand: IXYS

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IGBT MOD 1200V 650A 2100W
Series：-
Mfr：IXYS
Package：Box
IGBT Type：PT
Configuration：Half Bridge
Vce(on) (Max) @ Vge, Ic：2.15V @ 15V, 450A
Input：Standard
NTC Thermistor：Yes
Operating Temperature：-40°C ~ 150°C (TJ)
Mounting Type：Chassis Mount
Package / Case：Module
Supplier Device Package：Module
Voltage - Collector Emitter Breakdown (Max)：1200 V
Current - Collector (Ic) (Max)：650 A
Power - Max：2100 W
Current - Collector Cutoff (Max)：1 mA
Input Capacitance (Cies) @ Vce：-

Download product information

MIXA450PF1200TSF

Overview

The MIXA450PF1200TSF is an N-channel XPT IGBT module manufactured by IXYS. It features a SimBus F package with PCB mounting and contains two transistors. Key electrical parameters include a maximum collector-emitter voltage (VCEO) of 1200 V, a continuous collector current (Ic) of 450 A at 25°C, and a maximum collector-emitter saturation voltage (VceSAT) of 1.8 V. The module has a power dissipation (Pd) rating of 1.5 kW, operates within a temperature range of -40°C to +125°C, and utilizes a half-bridge configuration.

Feature Summary

XPT technology provides short-circuit ruggedness and low electromagnetic interference
SimBus F packaging enables direct PCB integration for compact designs
Half-bridge configuration integrates driver requirements into a single module

Applications

Industrial motor drives
Uninterruptible power supply systems
High-frequency power supplies

Procurement Notes

Verify the specific manufacturer part number against official Littelfuse or IXYS documentation to confirm authenticity. Ensure the component matches the required SimBus F package dimensions and pinout specifications. Check for RoHS compliance status in the latest datasheet. Confirm that the thermal management solution supports the specified power dissipation limits. Validate that the operating temperature range aligns with the system environment requirements.

Selection Notes

Select this module for applications requiring high current handling and robust short-circuit protection. The XPT technology offers advantages in gate charge and EMI performance compared to standard IGBTs. Consider the SimBus F form factor for space-constrained PCB layouts. Evaluate the thermal resistance characteristics to ensure adequate heat sinking. Compare the 1.8 V saturation voltage against system efficiency targets.

Part Context

This component belongs to the MIXA series of IGBT modules from IXYS, now part of Littelfuse. The series focuses on high-power density solutions using XPT technology. These modules are designed for demanding industrial and energy conversion applications where reliability and efficiency are critical. The SimBus F variant specifically targets printed circuit board mounting architectures.
