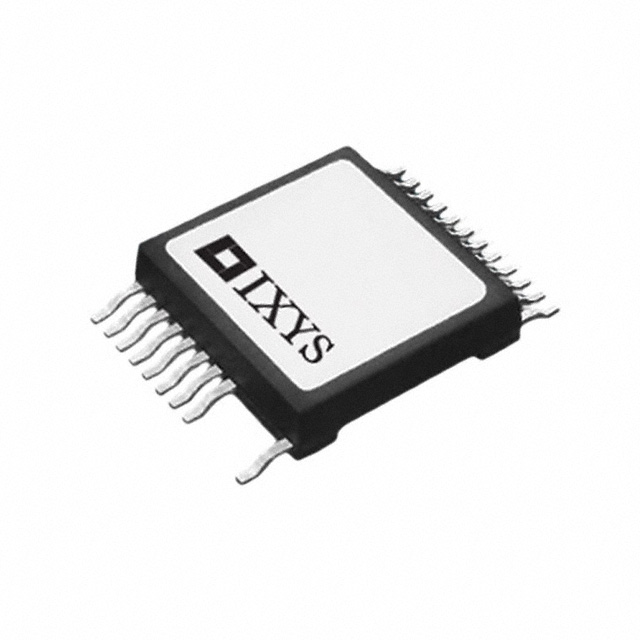

MMIX1X100N60B3H1

Overview

The MMIX1X100N60B3H1 is an Extreme Light Punch Through (XPT) Insulated Gate Bipolar Transistor manufactured by IXYS. Designed for switching frequencies between 10 kHz and 30 kHz, this single IGBT features a 600 V collector-emitter voltage rating. It utilizes the GenX3™ technology to achieve low saturation voltage characteristics suitable for high-efficiency power conversion applications.

Feature Summary

• Extreme Light Punch Through (XPT) technology optimized for medium-frequency switching operations
• GenX3™ trench gate structure providing enhanced performance and reliability
• Single configuration designed for integration into standard inverter modules

Applications

• Medium frequency inverters operating within the 10-30 kHz range
• Industrial motor drive systems requiring efficient power switching
• Uninterruptible Power Supply (UPS) units with high efficiency requirements

Procurement Notes

Verify the specific suffix H1 against the manufacturer's latest datasheet to confirm pinout compatibility and thermal resistance values. Ensure that the ordering documentation explicitly references the MMIX1X100N60B3H1 part number to avoid confusion with similar XPT series components. Cross-reference the RoHS status and REACH compliance details provided in the official product specifications prior to final procurement authorization.

Selection Notes

Select this component when designing circuits that require a balance between low conduction losses and manageable switching speeds around 10-30 kHz. The XPT technology offers superior short-circuit ruggedness compared to standard PT devices. Evaluate the thermal management requirements based on the junction-to-case thermal resistance specified in the electrical characteristics table of the official datasheet.

Part Context

This device belongs to the IXYS GenX3™ family of 600V IGBTs, which are engineered for industrial and consumer applications. The MMIX prefix typically indicates a module or specialized packaging format intended for integration into larger power assemblies rather than discrete through-hole mounting.

Replacement Considerations

Direct replacements should be sought from the IXYS XPT 600V portfolio with matching current ratings and package dimensions. Verify that alternative parts maintain compatible gate charge and switching energy parameters to ensure circuit stability without redesigning the driver stage.
