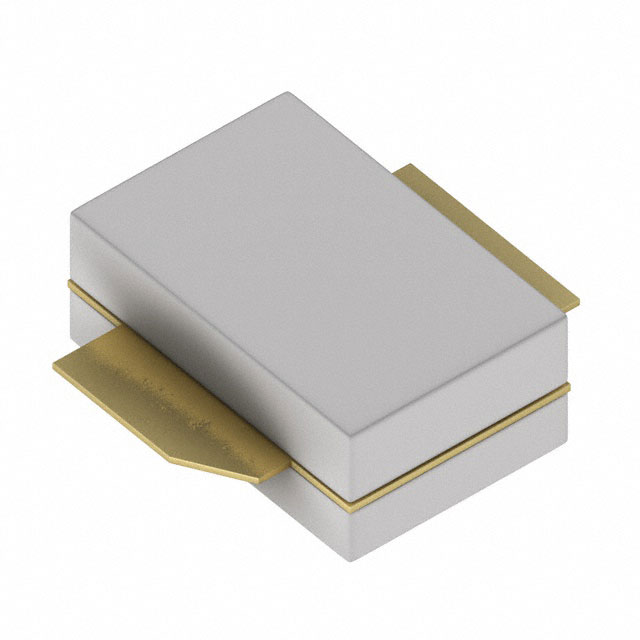

MRF373ALSR1

$41.29

Description：RF MOSFET LDMOS 32V NI360
Series：-

SKU:b54460191c3d Category: RF FETs, MOSFETs Brand: NXP USA Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：RF MOSFET LDMOS 32V NI360
Series：-
Mfr：NXP USA Inc.
Package：Tape & Reel (TR)
Technology：LDMOS
Frequency：860MHz
Gain：18.2dB
Voltage - Test：32 V
Current Rating (Amps)：-
Noise Figure：-
Current - Test：200 mA
Power - Output：75W
Voltage - Rated：70 V
Grade：-
Qualification：-
Mounting Type：Chassis Mount
Package / Case：NI-360S
Supplier Device Package：NI-360S
Configuration：-

Download product information

MRF373ALSR1

Overview

The MRF373ALSR1 is an N-channel enhancement-mode lateral MOSFET designed for broadband commercial and industrial applications operating between 470 MHz and 860 MHz. It delivers 75 Watts of output power with 18.2 dB of power gain at 860 MHz under 32 Volts DC bias. The device features integrated ESD protection, excellent thermal stability, and RoHS compliance. It utilizes the NI-360S package and is supplied in tape and reel format.

Feature Summary

Integrated electrostatic discharge (ESD) protection
Excellent thermal stability
Characterized with series equivalent large-signal impedance parameters

Applications

Broadband commercial transmitter equipment
Industrial transmitter equipment
Large-signal common source amplifier applications

Procurement Notes

Verify component authenticity through authorized channels. Confirm datasheet revision status as the device is not recommended for new designs. Ensure proper handling procedures are followed due to the surface mount packaging type.

Selection Notes

Evaluate thermal resistance characteristics against system cooling requirements. Verify impedance matching network compatibility with the specified source and load impedances. Confirm operational voltage limits align with the 32 Volt supply design.

Part Context

This component belongs to the Freescale Semiconductor RF Power Field Effect Transistors family. It is specifically engineered for high-gain, broadband performance in VHF/UHF frequency ranges. The product line targets robust performance in demanding RF power amplification scenarios.

Replacement Considerations

Consult official documentation for direct substitutes. Evaluate alternative LDMOS devices within the same manufacturer portfolio that meet identical frequency and power specifications.
