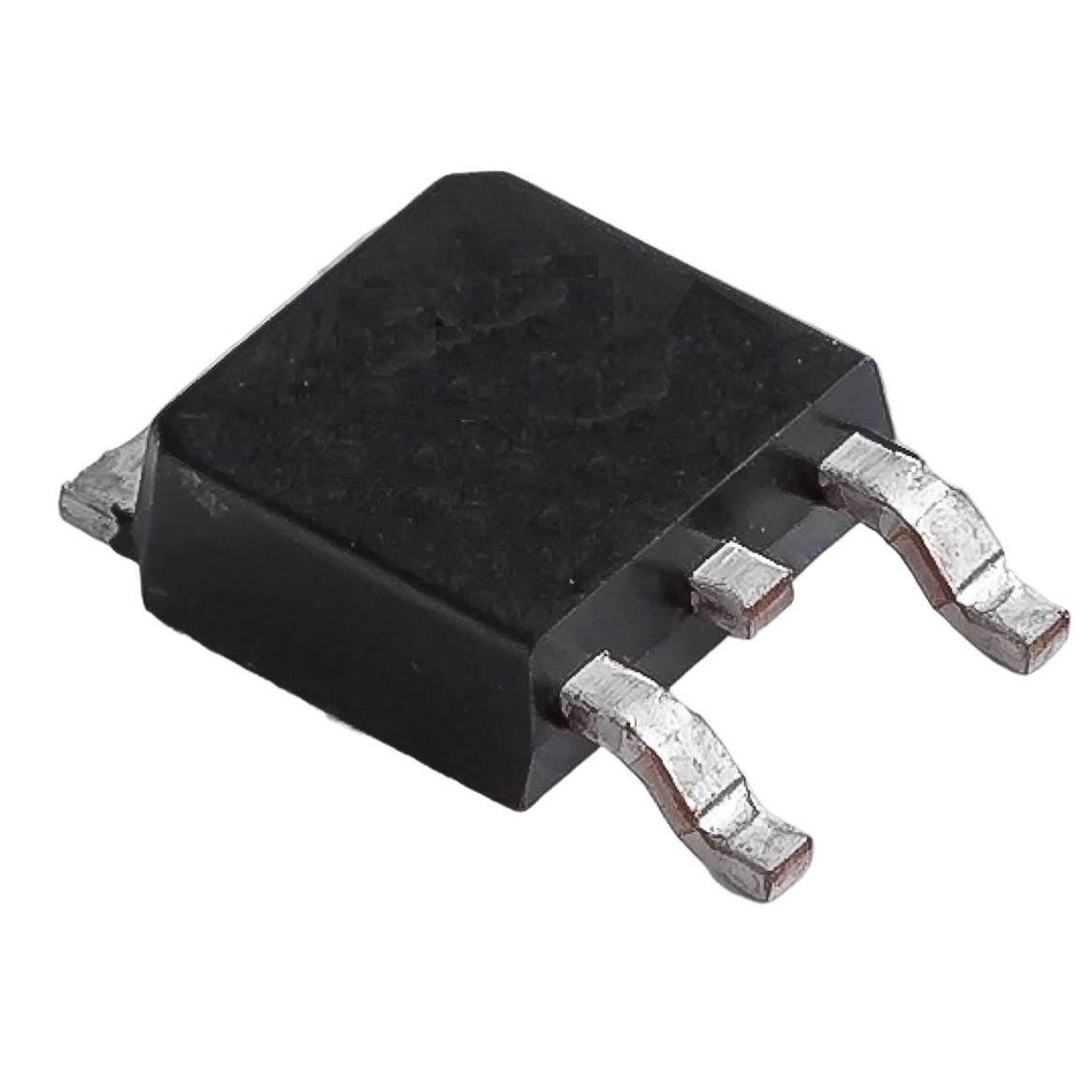

The MSB100P50 is a P-Channel MOSFET utilizing trench DMOS technology, designed for high efficiency and fast switching. It features a -100V drain-source voltage rating and a maximum continuous drain current of -35A at 25°C case temperature. The device guarantees an on-resistance of 50mΩ at VGS=-10V and ID=-20A. It supports a single pulse avalanche energy of 35.2mJ and operates within a junction temperature range of -55°C to +150°C.
Verify the specific datasheet revision (Rev. A -2023) against your design requirements. Confirm that the TO-263 package dimensions align with your PCB footprint. Ensure thermal management strategies account for the specified junction-to-ambient resistance values during operation.
Select this component for applications requiring robust avalanche capability and low conduction losses. Evaluate the thermal dissipation limits based on the operating environment, as power dissipation drops significantly from case-mounted to ambient conditions. Verify gate drive voltages match the threshold characteristics for optimal switching.
Manufactured by Bruckewell Technology Corporation, the MSB100P50 belongs to a series of P-Channel MOSFETs optimized for power management. The device integrates superior commutation mode withstand capabilities, making it suitable for demanding industrial and consumer electronics environments where space and efficiency are critical constraints.
No public confirmed substitute part numbers are available in the provided documentation.
The MSB100P50 guarantees 100% EAS testing with a maximum rating of 35.2 mJ at VDD=-50V, L=0.1mH, and IAS=-28A.
The normalized on-resistance increases with junction temperature, as illustrated in the typical electrical characteristics graph showing the relationship between RDS(ON) and TJ.
