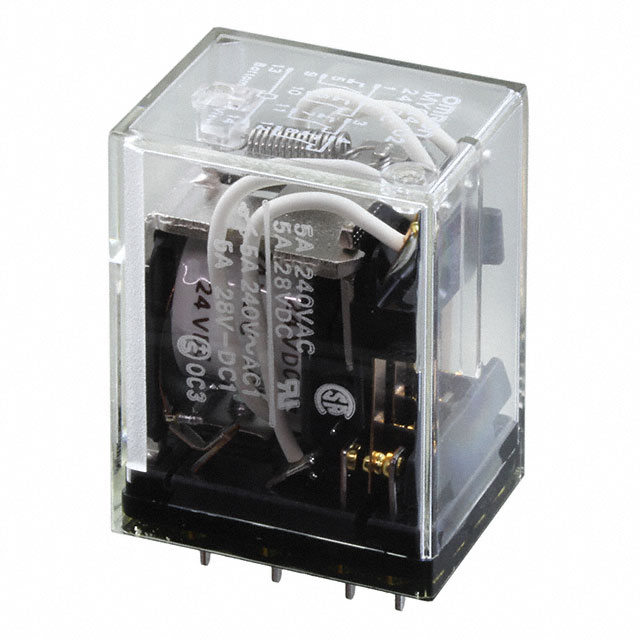

MYQ4-02-DC24

MYQ4-02-DC24 is listed in the Signal Relays, Up To 2 Amps range at ChipApex. The manufacturer field lists Omron Automation and Safety. Its product description is RELAY GEN PURPOSE 4PDT 1A 24V. Review the specifications below when checking this part for your BOM.

Signal Relays, Up To 2 Amps specifications for MYQ4-02-DC24

• Description：RELAY GEN PURPOSE 4PDT 1A 24V
• Series：MY
• Mfr：Omron Automation and Safety
• Package：Bulk
• Mounting Type：Through Hole
• Coil Voltage：24VDC
• Contact Form：4PDT (4 Form C)
• Contact Rating (Current)：1:00 AM
• Switching Voltage：250VAC, 125VDC - Max
• Load - Max Switching：250VA, 125W
• Coil Current：36.9 mA
• Coil Type：Non Latching
• Features：-
• Termination Style：PC Pin
• Seal Rating：Sealed - Fully
• Coil Insulation：-
• Must Operate Voltage：19.2 VDC
• Must Release Voltage：2.4 VDC
• Operate Time：20 ms
• Release Time：20 ms
• Operating Temperature：-55°C ~ 60°C
• Contact Material：Silver (Ag), Gold (Au)
• Approval Agency：CSA, UR
• Relay Type：General Purpose
• Grade：-
• Qualification：-

Signal Relays, Up To 2 Amps datasheet and documents for MYQ4-02-DC24
