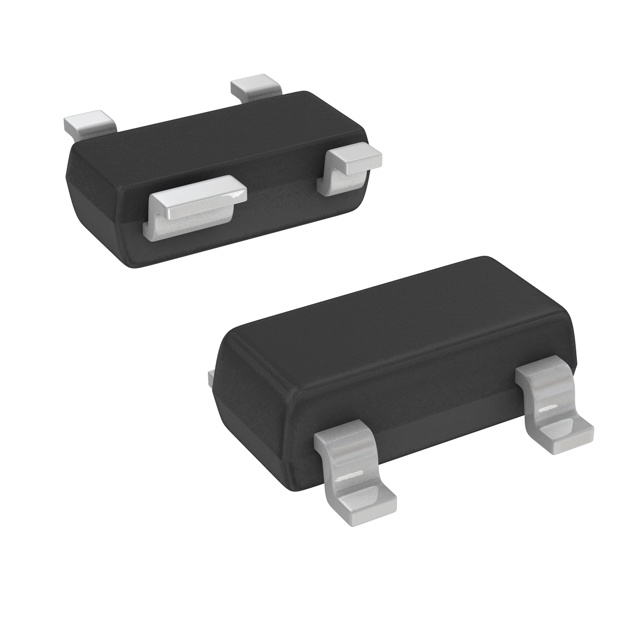

NE85639-T1-R27-A

$1.53

Description：RF TRANS NPN 12V 9GHZ SOT-143
Series：-

SKU:b5156b703fa5 Category: Bipolar RF Transistors Brand: CEL

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：RF TRANS NPN 12V 9GHZ SOT-143
Series：-
Mfr：CEL
Package：Tape & Reel (TR)
Transistor Type：NPN
Voltage - Collector Emitter Breakdown (Max)：12V
Frequency - Transition：9GHz
Noise Figure (dB Typ @ f)：1.1dB @ 1GHz
Gain：13dB
Power - Max：200mW
DC Current Gain (hFE) (Min) @ Ic, Vce：50 @ 20mA, 10V
Current - Collector (Ic) (Max)：100mA
Operating Temperature：150°C (TJ)
Mounting Type：Surface Mount
Package / Case：TO-253-4, TO-253AA
Supplier Device Package：SOT-143
Grade：-
Qualification：-

Download product information

NE85639-T1-R27-A

Overview

The NE85639-T1-R27-A is an NPN silicon RF bipolar transistor manufactured by CEL. It operates at frequencies up to 6.5 GHz with a noise figure of 1.1 dB. The device utilizes a surface-mount SOT-343 package, designated as SC-88 in some standards. This component is part of the NE85639 series, designed for high-frequency applications requiring low noise performance.
