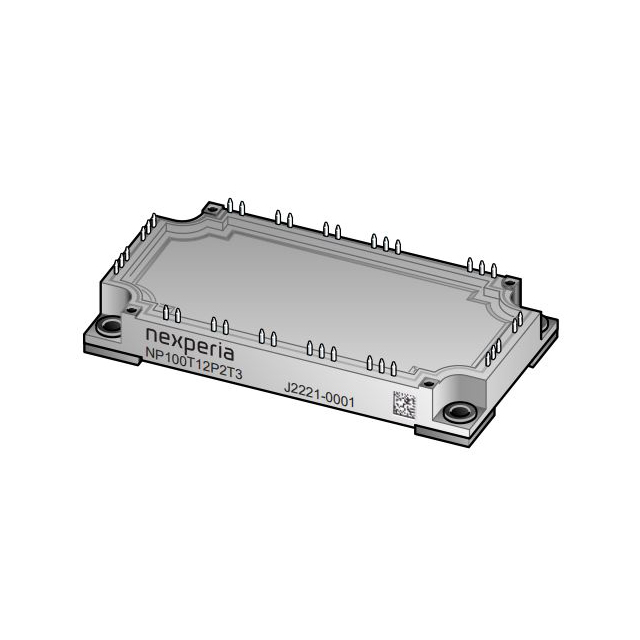

NP100T12P2T3Z

$123.30

Description：SOT8053/NP2-35P
Series：-

SKU:2431b2b512a6 Category: IGBT Modules Brand: Nexperia USA Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：SOT8053/NP2-35P
Series：-
Mfr：Nexperia USA Inc.
Package：Bulk
IGBT Type：-
Configuration：Three Phase Inverter with Brake
Vce(on) (Max) @ Vge, Ic：1.95V @ 15V, 50A
Input：Three Phase Bridge Rectifier
NTC Thermistor：Yes
Operating Temperature：-40°C ~ 150°C (TJ)
Mounting Type：Chassis Mount
Package / Case：Module
Supplier Device Package：-
Voltage - Collector Emitter Breakdown (Max)：1200 V
Current - Collector (Ic) (Max)：50 A
Power - Max：20 mW
Current - Collector Cutoff (Max)：1 mA
Input Capacitance (Cies) @ Vce：3650 pF @ 25 V

Download product information

NP100T12P2T3Z

Overview

The NP100T12P2T3 is a 1200 V, 100 A Power Integrated Module featuring an IGBT and anti-parallel free-wheeling diode. It provides ultra-low conduction loss and short circuit ruggedness with a 10 μs capability. The module includes an integrated NTC thermistor for temperature monitoring. Electrical characteristics include a collector-emitter saturation voltage of 1.85 V at 100 A and 150 °C. Thermal resistance from junction to case is 0.26 K/W per IGBT and 0.45 K/W per diode in the inverter configuration. The package is SOT8053-1, measuring 62.5 mm × 122.5 mm × 17 mm.

Feature Summary

Low switching losses and low saturation voltage
Fast and soft reverse recovery anti-parallel free-wheeling diode
Integrated NTC thermistor temperature sensor

Applications

Inverter for motor drivers
Inverter for servo drivers
AC/DC servo drive amplifier

Procurement Notes

Verify the specific ordering suffix T3Z against official Nexperia documentation to confirm pinout and packaging details. Ensure the procurement channel sources directly from authorized distributors or Nexperia to guarantee product authenticity and access to current revision data sheets.

Selection Notes

Select this module for high-power inverter applications requiring robust short-circuit protection up to 10 μs. Consider the positive temperature coefficient of VCE(sat) for parallel operation stability. Verify thermal management requirements against the specified junction-to-case thermal resistance values for both IGBT and diode sections.

Part Context

This component belongs to Nexperia's power integrated module series designed for industrial motor control. It combines high-voltage IGBT technology with optimized diode characteristics in a single plastic house package. The design targets efficiency improvements in servo drives and motor inverters through reduced switching energy.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided datasheet. Consult Nexperia technical support for cross-reference recommendations based on specific electrical and mechanical constraints.
