NPT1007B

Overview

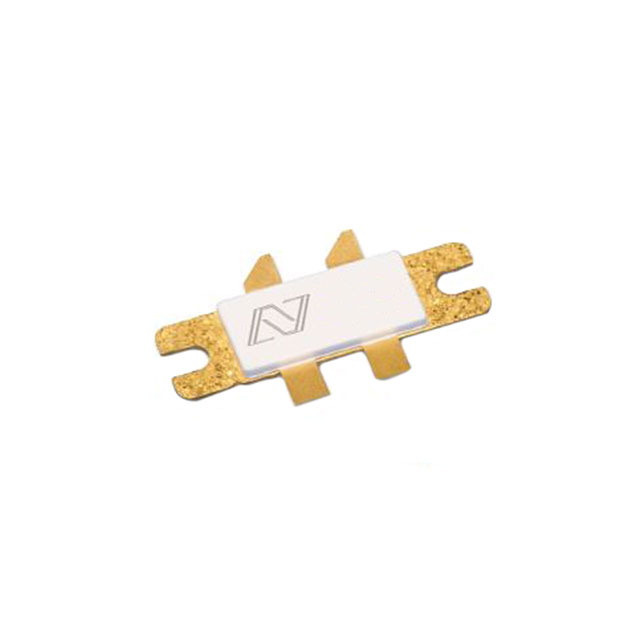

The NPT1007B is a Gallium Nitride (GaN) HEMT RF power transistor manufactured by MACOM Technology Solutions. It operates from DC to 1200 MHz and delivers up to 200W P3dB CW power at 900MHz in quadrature combined or push-pull configurations. The device utilizes SIGANTIC® NRF1 technology, offering high efficiency across 14V to 28V drain voltages. It features a thermal resistance of 1.0 °C/W with a maximum junction temperature rating of 200°C. The component is housed in an AC780B-4 metal-ceramic bolt-down package.

Feature Summary

• Built using proprietary SIGANTIC® NRF1 GaN-on-Silicon technology for robust performance
• Optimized for narrowband and broadband applications spanning DC to 1200 MHz
• Capable of delivering 200W P3dB CW power at 900MHz in combined configurations
• Maintains high efficiency across a wide operating voltage range of 14V to 28V

Applications

• Military communication systems
• Electronic warfare equipment
• Radar transmitters
• Broadband amplifiers

Procurement Notes

Verify the specific datasheet revision (e.g., Rev. 3) against the manufacturer's official documentation before finalizing designs. Confirm that the AC780B-4 metal-ceramic package dimensions align with your mechanical constraints. Ensure compliance with EAR99 export control regulations applicable to your region. Validate thermal management requirements based on the specified 1.0 °C/W junction-to-case thermal resistance.

Selection Notes

Select this component when designing high-power RF amplifiers requiring operation up to 1200 MHz. It is suitable for applications demanding high efficiency and robustness against VSWR mismatches. Consider its suitability for quadrature combined or push-pull topologies to achieve the specified 200W output power. Evaluate the thermal design capabilities required to maintain the junction temperature within the 200°C limit during continuous wave operation.

Part Context

The NPT1007B belongs to the Nitronex family of GaN HEMT devices, leveraging SIGANTIC® technology. This series targets high-performance RF power applications where reliability and efficiency are critical. The device represents a transition towards higher power densities in military and commercial RF systems, utilizing advanced semiconductor processes to enhance breakdown voltage and thermal handling compared to traditional silicon-based alternatives.

Replacement Considerations

Consult the manufacturer's official substitution guide for verified equivalents. Cross-reference impedance matching networks and biasing requirements if considering alternative GaN HEMTs. Verify pinout compatibility and package dimensions to ensure seamless integration without redesigning the PCB or mechanical housing.
