Product Detailed Parameters
- Description：DIODE ARRAY SCHOTTKY 60V 3A 8DFN
- Series：-
- Mfr：onsemi
- Package：Bulk
- Diode Configuration：2 Independent
- Technology：Schottky
- Voltage - DC Reverse (Vr) (Max)：60 V
- Current - Average Rectified (Io) (per Diode)：3A
- Voltage - Forward (Vf) (Max) @ If：630 mV @ 3 A
- Speed：Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr)：-
- Current - Reverse Leakage @ Vr：55 µA @ 60 V
- Operating Temperature - Junction：-55°C ~ 175°C
- Mounting Type：Surface Mount

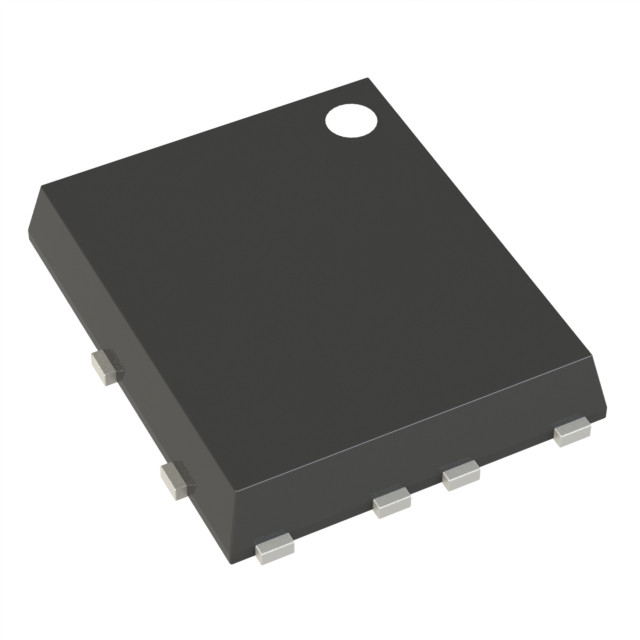

- Package / Case：8-PowerTDFN
- Supplier Device Package：8-DFN (5x6) Dual Flag (SO8FL-Dual)
- Grade：Automotive
- Qualification：AEC-Q101
Download product information
Overview
The NRVTS660MFDWFT1G is a Schottky barrier rectifier diode array manufactured by onsemi. It features two independent channels within a single surface-mount package. The device is rated for a maximum repetitive peak reverse voltage of 60 V and an average forward current of 3 A per channel. It utilizes trench rectifier technology to achieve low forward voltage drop and high switching efficiency. The component is housed in an 8-PowerTDFN package with wettable flanks, designed for automated assembly processes.
Feature Summary
- Dual independent Schottky barrier rectifier configuration
- Trench rectifier technology for enhanced performance
- Surface-mount design with wettable flank leads
Applications
- DC-DC converter circuits
- Power supply output rectification
- General-purpose rectification in consumer electronics
Procurement Notes
Verify the specific suffix 'WFT' against official datasheets to confirm the wettable flank package variant. Ensure compatibility with standard reflow soldering profiles for PowerTDFN components. Cross-reference the part number with manufacturer documentation to distinguish from similar non-wettable flank variants.
Selection Notes
Select this component for applications requiring dual-channel rectification in space-constrained designs. The 60V rating suits low-voltage power systems. The wettable flank feature facilitates optical inspection of solder joints, improving quality control in high-volume manufacturing environments compared to standard packages.
Part Context
This part belongs to onsemi's NRVTS series of Schottky diode arrays. The series emphasizes low forward voltage and fast recovery characteristics suitable for modern power management needs. The specific model integrates two diodes, offering a compact solution for multi-rail or differential power distribution requirements in portable devices.
Replacement Considerations
Check for direct substitutes within the NRVTS series that match the 60V/3A specification. Verify pinout compatibility and thermal characteristics when considering alternative manufacturers. Ensure any replacement maintains the wettable flank requirement if visual inspection is critical.
