NSVBCP53MTWG

Single Bipolar Transistors Overview

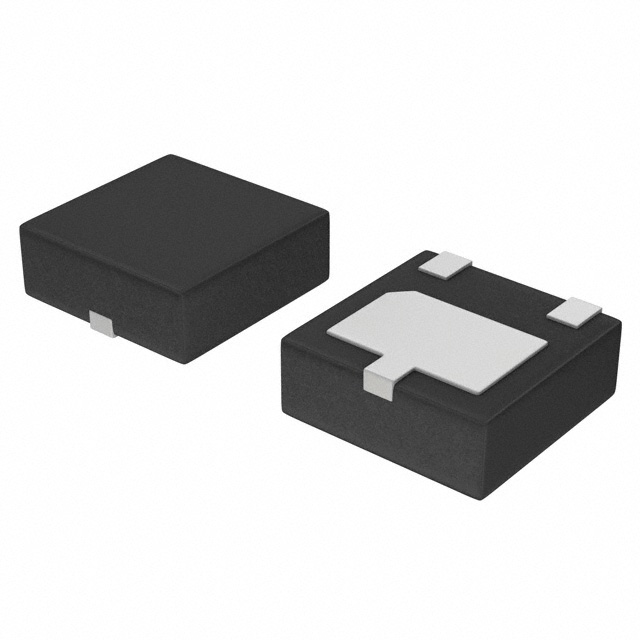

The NSVBCP53MTWG is a PNP bipolar junction transistor (BJT) from the BCP53M series, manufactured by onsemi. It features an 80 V collector-emitter voltage rating and supports a continuous collector current of 1 A. The device utilizes a WDFNW3 2x2 package with wettable flanks for enhanced inspection reliability. Electrical characteristics include a transition frequency of 130 MHz and a DC current gain minimum of 63 at 150 mA. Thermal performance allows for up to 1.5 W power dissipation under specific board conditions, operating within a temperature range of -65°C to +150°C.

Single Bipolar Transistors Feature Summary

• Wettable flank package design facilitates optimal automated optical inspection (AOI).
• NSV prefix indicates qualification for automotive applications requiring unique site and control change requirements.
• AEC-Q101 qualified and PPAP capable for rigorous quality standards.

Single Bipolar Transistors Applications

• General purpose amplifier circuits
• Medium-power surface mount applications
• Automotive electronic systems

Single Bipolar Transistors Procurement Notes

Verify the NSV prefix requirement against your Bill of Materials, as it denotes specific manufacturing site controls and AEC-Q101 qualification distinct from standard variants. Confirm the WDFNW3 package dimensions match your PCB footprint. Ensure compliance with RoHS and halogen-free specifications if required by your assembly process. Cross-reference the ordering information to validate the correct shipping configuration.

Single Bipolar Transistors Selection Notes

Select this component when high-reliability surface-mount technology is required for medium-power PNP switching or amplification. The wettable flank feature is critical for automated inspection in high-volume production environments. Consider the thermal resistance values relative to your PCB copper area and ambient temperature constraints. Verify that the 80 V rating and 1 A current capacity meet the circuit's maximum operational demands without exceeding safe operating area limits.

Single Bipolar Transistors Part Context

This part belongs to the BCP53M family of general-purpose PNP transistors designed for robust performance in compact form factors. The NSV variant specifically targets automotive and industrial sectors demanding strict supply chain traceability and quality control. It serves as a reliable alternative to through-hole packages while maintaining comparable electrical characteristics in a space-saving surface-mount solution.

Single Bipolar Transistors Replacement Considerations

BCP5310MTWG

Single Bipolar Transistors FAQ

What is the significance of the NSV prefix in the part number?

The NSV prefix indicates that the device is qualified for automotive and other applications requiring unique site and control change requirements, including AEC-Q101 qualification and PPAP capability.

How does the wettable flank package benefit the component?

The wettable flank design ensures solder visibility on the side leads, enabling optimal Automated Optical Inspection (AOI) to verify solder joint quality and reduce defects.

What is the maximum collector-emitter voltage for this transistor?

The maximum collector-emitter voltage (VCEO) is rated at -80 Vdc.
