NSVF6001SB6T1G

Overview

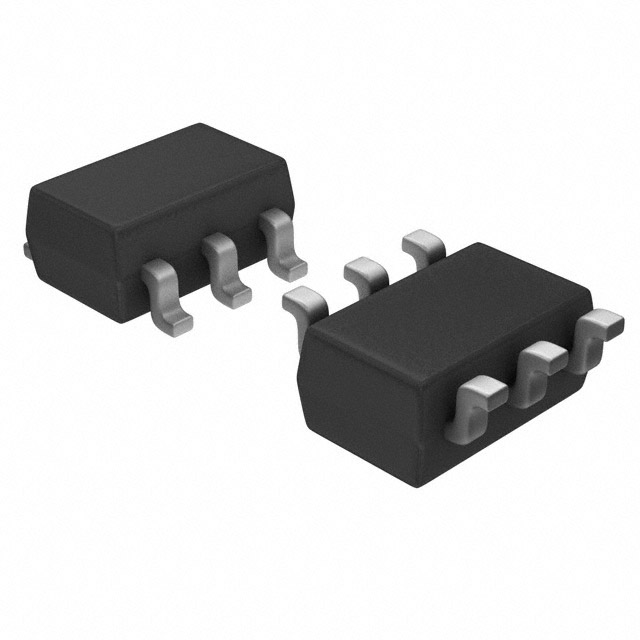

The NSVF6001SB6T1G is an RF NPN bipolar junction transistor manufactured by onsemi. It operates at a transition frequency of 7 GHz with a maximum collector-emitter voltage of 12 V and a continuous collector current of 150 mA. The device features a minimum DC current gain (hFE) of 100 and dissipates up to 800 mW of power. It is housed in a CPH-6 surface-mount package, rated for operation between -55°C and +150°C, and holds AEC-Q101 automotive qualification.

Feature Summary

• Automotive-grade reliability certified under the AEC-Q101 standard for robust performance in demanding environments.
• High-frequency capability optimized for radio frequency applications through a 7 GHz transition frequency rating.
• Wide thermal operating range supporting functionality from -55°C to +150°C.

Applications

• RF amplification stages in wireless communication systems
• Signal processing circuits in automotive electronics
• High-frequency oscillator designs

Procurement Notes

Verify component authenticity against official onsemi documentation before integration. Confirm that the specific part number matches project requirements, as this component may be subject to end-of-life status or obsolescence notices. Ensure all electrical parameters align with system specifications prior to procurement.

Selection Notes

Select this component when high-frequency RF performance is required alongside automotive-grade durability. The 12 V breakdown voltage and 150 mA current capacity suit low-power amplifier applications. Verify compatibility with the CPH-6 footprint during PCB layout design.

Part Context

This device belongs to the NSVF6003SB6 series of RF bipolar transistors. While sharing similar packaging and general characteristics, specific electrical limits such as transition frequency and current ratings distinguish it within the family. Consult the manufacturer datasheet for precise differentiation between variants.

Replacement Considerations

Direct substitutes must match the CPH-6 package, 12 V VCEO, and 7 GHz fT specifications. Verify equivalent AEC-Q101 qualification if automotive compliance is mandatory. Cross-reference pinouts and thermal resistance values to ensure seamless integration without circuit modification.

FAQ

Is the NSVF6001SB6T1G qualified for automotive use?

Yes, the component holds AEC-Q101 qualification, indicating suitability for automotive electronic applications.

What is the maximum power dissipation of this transistor?

The maximum power dissipation (Pd) is rated at 800 mW.

Does this component support high-temperature operations?

Yes, the device is rated for a maximum operating temperature of +150°C.
