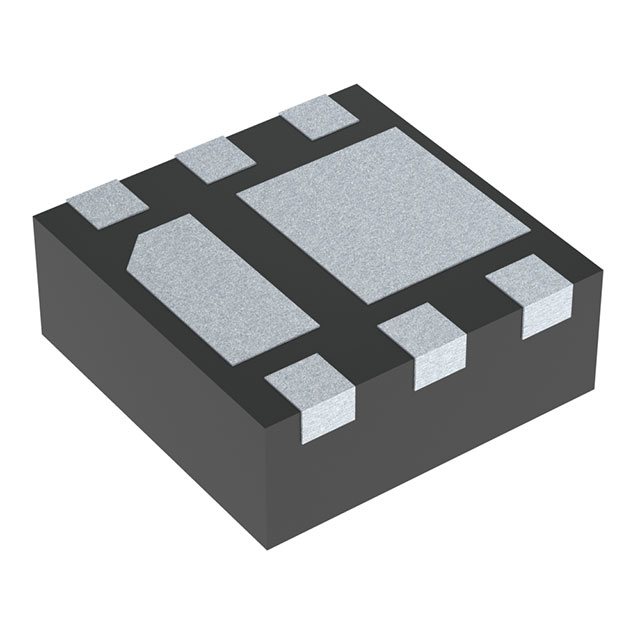

NTLJD2105LTBG

$0.18

Description：MOSFET N/P-CH 8V 2.5A 6WDFN
Series：-

SKU:fda6c7b0618b Category: FET, MOSFET Arrays Brand: onsemi

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：MOSFET N/P-CH 8V 2.5A 6WDFN
Series：-
Mfr：onsemi
Package：Tape & Reel (TR),Bulk
Technology：MOSFET (Metal Oxide)
Configuration：N and P-Channel
FET Feature：-
Drain to Source Voltage (Vdss)：8V
Current - Continuous Drain (Id) @ 25°C：2.5A
Rds On (Max) @ Id, Vgs：50mOhm @ 4A, 4.5V
Vgs(th) (Max) @ Id：1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs：-
Input Capacitance (Ciss) (Max) @ Vds：-
Power - Max：520mW
Operating Temperature：-55°C ~ 150°C (TJ)
Mounting Type：Surface Mount
Package / Case：6-WDFN Exposed Pad
Supplier Device Package：6-WDFN (2x2)
Grade：-
Qualification：-

Download product information

NTLJD2105LTBG

Overview

The onsemi NTLJD2105LTBG is a dual MOSFET array integrating one N-channel and one P-channel transistor in a compact WDFN6 package. It features an 8V drain-source voltage rating and supports continuous currents of 2.5A for the N-channel and 2.3A for the P-channel variant. The device offers low on-resistance to minimize power loss during switching operations. Designed for surface mount installation, it operates within a temperature range of -55°C to 150°C. This component is suitable for applications requiring efficient power management and signal switching in space-constrained environments.

Feature Summary

Integrates complementary N-channel and P-channel MOSFETs in a single package
Compact WDFN6 footprint designed for high-density PCB layouts
Low on-resistance characteristics for efficient power handling

Applications

Power management circuits
Embedded system switching
Signal routing interfaces

Procurement Notes

Verify the specific ordering suffix to ensure the correct package configuration and shipping quantity. Confirm that the WDFN6 package dimensions align with your board design constraints. Check for AEC-Q101 qualification if automotive reliability standards are required for your specific application environment.

Selection Notes

Select this component when both N-type and P-type switching capabilities are needed in a minimal footprint. Ensure the 8V voltage rating meets the circuit requirements. Evaluate thermal performance based on the expected current load and ambient operating conditions to maintain reliability.

Part Context

This part belongs to onsemi's lineup of discrete semiconductor devices, specifically focusing on MOSFET arrays. It complements other power management solutions by providing integrated switching functionality. The WDFN6 package allows for reduced board space compared to separate discrete components, supporting modern miniaturization trends in electronic design.
