NTMFC013NP10M5L

$2.95

Description：MOSFET N/P-CH 100V 9A 8WDFN
Series：-

SKU:1203b2ae9338 Category: FET, MOSFET Arrays Brand: onsemi

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：MOSFET N/P-CH 100V 9A 8WDFN
Series：-
Mfr：onsemi
Package：Tape & Reel (TR),Cut Tape (CT)
Technology：MOSFET (Metal Oxide)
Configuration：N and P-Channel
FET Feature：-
Drain to Source Voltage (Vdss)：100V
Current - Continuous Drain (Id) @ 25°C：9A (Ta), 60A (Tc), 5A (Ta), 36A (Tc)
Rds On (Max) @ Id, Vgs：13.4mOhm @ 8.5A, 10V, 36mOhm @ 8.5A, 10V
Vgs(th) (Max) @ Id：3V @ 158µA, 4V @ 158µA
Gate Charge (Qg) (Max) @ Vgs：23nC @ 4.5V, 30nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds：1345pF @ 50V, 2443pF @ 50V
Power - Max：2.7W (Ta), 102W (Tc)
Operating Temperature：-55°C ~ 150°C (TJ)
Mounting Type：Surface Mount
Package / Case：8-PowerWDFN
Supplier Device Package：8-WDFN (5x6)
Grade：-
Qualification：-

Download product information

NTMFC013NP10M5L

Overview

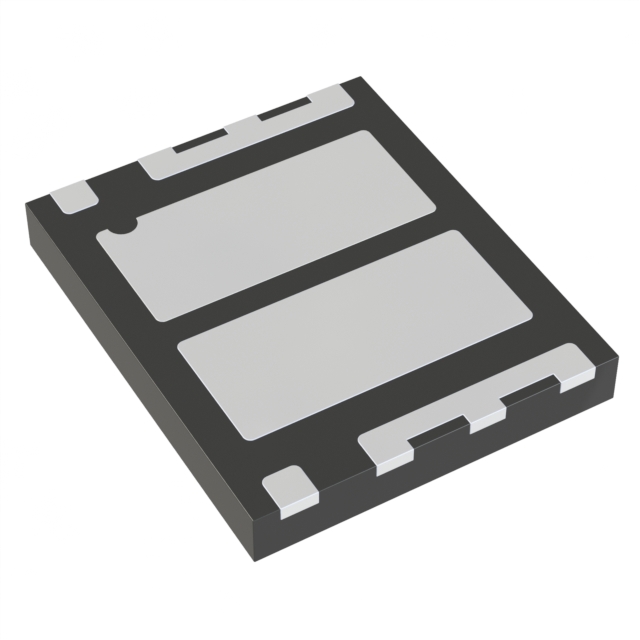

The NTMFC013NP10M5L is a dual-channel power MOSFET array manufactured by onsemi, featuring integrated N-Channel and P-Channel configurations. It is housed in an 8-WDFN (5x6 mm) surface-mount package designed for high-density applications. The device supports a drain-source voltage of 100 V with a typical on-resistance of 13.4 mΩ for the N-Channel and 32 mΩ for the P-Channel. Rated currents reach 60 A at case temperature and 36 A for the P-Channel. Operating junction temperatures range from -55°C to 150°C, ensuring reliability in demanding thermal environments.

Feature Summary

Integrates complementary N-Channel and P-Channel MOSFETs into a single compact package for efficient circuit design.
Features low on-resistance characteristics to minimize conduction losses and improve power efficiency.
Supports high current handling capabilities suitable for robust power switching applications.

Applications

Motor control systems requiring complementary drive signals
Power management units in consumer electronics
Industrial automation equipment interfaces

Procurement Notes

Verify the specific manufacturer part number against official onsemi documentation to ensure authenticity. Confirm that the 8-WDFN (5x6) package dimensions match your PCB footprint requirements. Check for any specific handling instructions related to the surface-mount technology and thermal dissipation needs during assembly. Ensure compliance with relevant safety and environmental standards applicable to your region.

Selection Notes

Select this component when space constraints require a dual MOSFET solution within a small footprint. Consider the 100 V rating and low on-resistance values for efficiency-critical designs. Evaluate the thermal performance capabilities relative to your system's heat dissipation strategy. Compare current ratings against peak load requirements to ensure adequate margin for reliable operation under varying conditions.

Part Context

This device belongs to onsemi's portfolio of discrete power semiconductors, specifically targeting applications needing integrated complementary switching. It complements other MOSFET arrays by offering a balanced N/P configuration in a modern surface-mount format. The product line emphasizes performance density and thermal stability for modern electronic systems.

Replacement Considerations

Consult official onsemi substitution guides for verified alternatives. Cross-reference pinouts and electrical parameters carefully before replacing. Generic equivalents may not match the specific on-resistance or current ratings required for optimal system performance.
