NTMTS001N06CTXG is listed in the Single FETs, MOSFETs range at ChipApex. The manufacturer field lists onsemi. Its product description is MOSFET N-CH 60V 53.7A/376A 8DFNW. Review the specifications below when checking this part for your BOM.
Single FETs, MOSFETs specifications for NTMTS001N06CTXG
- Description：MOSFET N-CH 60V 53.7A/376A 8DFNW
- Series：-
- Mfr：onsemi
- Package：Tape & Reel (TR),Cut Tape (CT)
- FET Type：N-Channel
- Technology：MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss)：60 V
- Current - Continuous Drain (Id) @ 25°C：53.7A (Ta), 376A (Tc)
- Drive Voltage (Max Rds On, Min Rds On)：10V
- Rds On (Max) @ Id, Vgs：0.91mOhm @ 50A, 10V
- Vgs(th) (Max) @ Id：4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs：113 nC @ 10 V
- Vgs (Max)：±20V
- Input Capacitance (Ciss) (Max) @ Vds：8705 pF @ 30 V
- FET Feature：-
- Power Dissipation (Max)：5W (Ta), 244W (Tc)
- Operating Temperature：-55°C ~ 175°C (TJ)
- Grade：-
- Qualification：-
- Mounting Type：Surface Mount
- Supplier Device Package：8-DFNW (8.3x8.4)
- Package / Case：8-PowerTDFN
Single FETs, MOSFETs datasheet and documents for NTMTS001N06CTXG
Single FETs, MOSFETs Overview

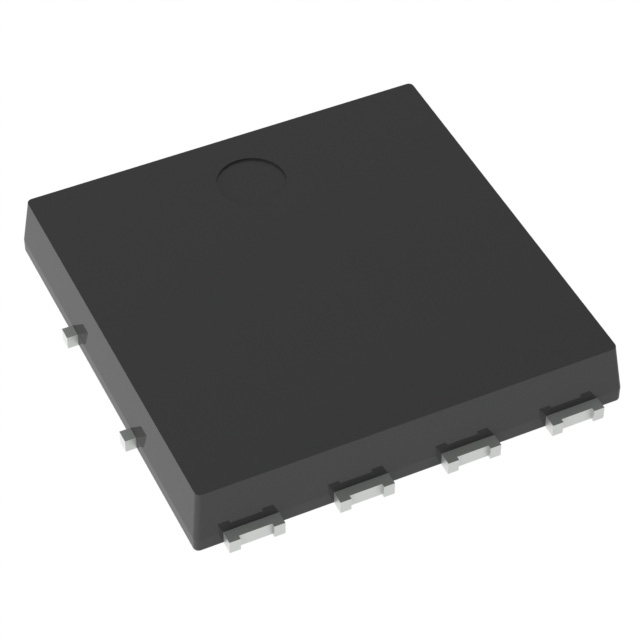

The NTMTS001N06CTXG is a single N-channel power MOSFET from onsemi, housed in a compact 8x8 mm POWER 88 (CASE 507AP) surface-mount package. It features a 60 V drain-to-source voltage rating and a maximum continuous drain current of 376 A at 25°C case temperature. The device exhibits a low on-resistance of 0.91 mΩ at a gate drive of 10 V. Key electrical parameters include a total gate charge of 113 nC and an input capacitance of 8705 pF. It supports a wide operating junction temperature range from -55°C to +175°C.
Single FETs, MOSFETs Feature Summary
- Small footprint design optimized for space-constrained applications
- Low on-resistance minimizes conduction losses
- Reduced gate charge and capacitance lower driver losses
Single FETs, MOSFETs Applications
- Power tools and battery-operated vacuums
- UAVs, drones, and material handling equipment
- Battery management systems and energy storage
- Home automation systems
Single FETs, MOSFETs Procurement Notes
Verify the specific ordering suffix 'TXG' corresponds to the tape and reel shipping configuration containing 3000 units per reel. Confirm that the component meets Pb-Free, Halogen Free, and BFR Free requirements alongside RoHS compliance standards. Ensure the procurement documentation aligns with the official datasheet revision and package dimensions provided by the manufacturer.
Single FETs, MOSFETs Selection Notes
Select this component when high current capacity is required within a limited board area. The low thermal resistance facilitates efficient heat dissipation in steady-state operations. Evaluate the gate threshold voltage and total gate charge against the driving circuit capabilities to ensure optimal switching performance and minimize overall system power consumption during operation.
Single FETs, MOSFETs Part Context
This part belongs to the NTMTS001N06C series of single N-channel power MOSFETs manufactured by onsemi. It utilizes the POWER 88 package to deliver high current handling in a small form factor. The series is designed for robust performance in demanding power conversion and switching environments requiring high efficiency and reliability.
Single FETs, MOSFETs Replacement Considerations
Direct substitutes within the same family include NVMTS001N06CL and NVMTS001N06CTXG. Verify pinout compatibility and thermal characteristics before implementation.
