Product Detailed Parameters
- Description：MOSFET 60V U8FL
- Series：-
- Mfr：onsemi
- Package：Tape & Reel (TR),Cut Tape (CT)
- Technology：-
- Configuration：-
- FET Feature：-
- Drain to Source Voltage (Vdss)：-
- Current - Continuous Drain (Id) @ 25°C：-
- Rds On (Max) @ Id, Vgs：-
- Vgs(th) (Max) @ Id：-
- Gate Charge (Qg) (Max) @ Vgs：-
- Input Capacitance (Ciss) (Max) @ Vds：-
- Power - Max：-
- Operating Temperature：-
- Mounting Type：Surface Mount
- Package / Case：8-PowerWDFN
- Supplier Device Package：8-WDFN (3.3x3.3)
- Grade：-
- Qualification：-
Download product information
Overview

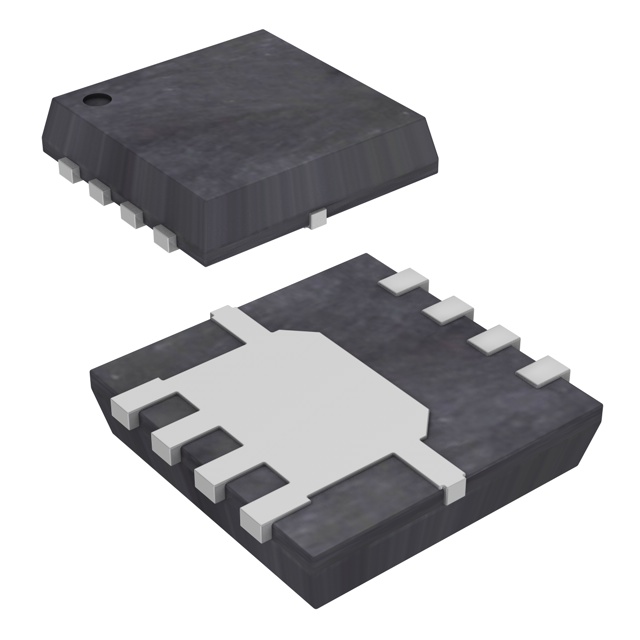

The NTTFS5C658NLTAG is a single N-channel enhancement mode MOSFET from onsemi, designed for high-current applications. It features a maximum drain-source voltage (V_DSS) of 60 V and a gate-source voltage (V_GS) rating of ±20 V. The device exhibits a low on-resistance (R_DS(on)) of 5.0 mΩ at V_GS = 10 V and 109 A continuous drain current (I_D) at case temperature of 25°C. Packaged in an 8-WDFN (3.3x3.3 mm) footprint, it supports a maximum power dissipation of 114 W at T_C = 25°C. The component operates within a junction temperature range of -55°C to +175°C and meets AEC-Q101 automotive qualification standards.
Feature Summary
- Compact 3.3x3.3 mm WDFN-8 package optimized for space-constrained PCB layouts
- Low on-resistance design minimizes conduction losses in high-current paths
- Automotive-grade reliability certified under AEC-Q101 standards
- Lead-free and RoHS compliant construction for environmental safety
Applications
- Automotive power distribution units and fuse box implementations
- High-efficiency DC-DC buck converter stages
- Motor control circuits requiring robust switching capabilities
Procurement Notes
Verify the specific ordering suffix against official manufacturer documentation to confirm exact packaging configuration and reel specifications. Ensure that the procurement channel provides valid traceability records consistent with onsemi quality management systems. Cross-reference the part number with the latest datasheet revision to confirm compliance with current environmental directives such as RoHS and REACH requirements before finalizing purchase orders.
Selection Notes
Select this component when designing circuits requiring a balance between high current handling capacity and minimal board space utilization. The 60 V rating suits low-voltage automotive and industrial systems. Evaluate thermal management strategies carefully, as the small package size necessitates effective heat dissipation to maintain performance within the specified junction temperature limits during continuous operation.
Part Context
This part belongs to the NVxFS5CxxxNL series of automotive power MOSFETs from onsemi. The series is characterized by advanced trench technology aimed at reducing on-resistance while maintaining high breakdown voltage capabilities. These devices are engineered specifically for demanding automotive environments where reliability and thermal performance are critical factors in system design.
Replacement Considerations
Direct substitutes include other parts within the same NVxFS5CxxxNL family with compatible electrical ratings. Verify pinout compatibility and thermal resistance characteristics when considering alternative packages or manufacturers. Ensure any replacement maintains AEC-Q101 certification if required for the specific application environment.
