NVTFS5116PLWFTWG

Single FETs, MOSFETs Overview

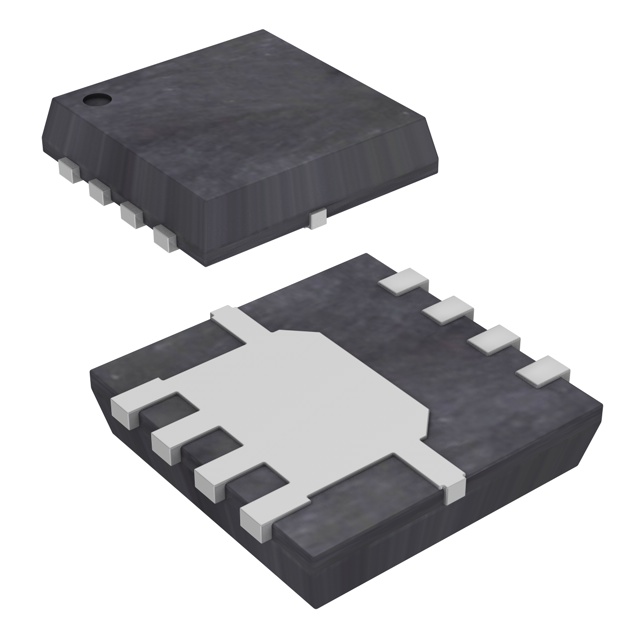

The NVTFS5116PLWFTWG is a single P-Channel power MOSFET manufactured by onsemi, housed in a WDFNW8 (3.3 x 3.3 mm) package with wettable flanks. It features a drain-to-source voltage of -60 V and a continuous drain current of -14 A at 25°C mounting base temperature. The device exhibits a maximum on-resistance of 52 mΩ at -10 V gate drive and 72 mΩ at -4.5 V. Total gate charge is 25 nC at -10 V. It operates within a junction temperature range of -55°C to +175°C and holds AEC-Q101 qualification.

Single FETs, MOSFETs Feature Summary

• Small footprint design for compact applications
• Low on-resistance to minimize conduction losses
• Low capacitance to reduce driver losses
• Wettable flanks product for enhanced solder joint inspection

Single FETs, MOSFETs Applications

• Automotive electronics requiring AEC-Q101 qualification
• Power management circuits minimizing conduction losses
• Driver stages requiring low switching losses

Single FETs, MOSFETs Procurement Notes

Verify the specific ordering suffix 'WF' indicates the Wettable Flanks variant, which differs from standard packages. Confirm the tape and reel quantity matches the required production volume, as this specific part number corresponds to a 5000-unit reel. Ensure compatibility with RoHS and Pb-Free manufacturing standards during assembly.

Single FETs, MOSFETs Selection Notes

Select this component when high current handling up to 14 A is required alongside low thermal resistance. The wettable flank feature facilitates automated optical inspection of solder joints. Consider the -60 V rating for systems operating near this threshold. Evaluate thermal performance based on the specified junction-to-board resistance values under steady-state conditions.

Single FETs, MOSFETs Part Context

This device belongs to the NVTFS5116PL series of single P-Channel MOSFETs. It shares the same electrical characteristics as the NVTFS5116PLTWG but utilizes the WDFNW8 package with wettable flanks instead of the standard WDFN8. Both variants offer identical performance metrics while differing in package construction and inspection capabilities.

Single FETs, MOSFETs Replacement Considerations

The NVTFS5116PLTWG serves as a direct functional substitute with identical electrical parameters but lacks wettable flanks. Verify package dimensions and marking differences if mechanical constraints or inspection requirements are critical.
