Product Detailed Parameters
- Description：IGBT MODULE SUNGROW 20KW Q1PACK
- Series：-
- Mfr：onsemi
- Package：Tray
- IGBT Type：-
- Configuration：Three Phase
- Vce(on) (Max) @ Vge, Ic：2.2V @ 15V, 40A
- Input：Three Phase Bridge Rectifier
- NTC Thermistor：Yes
- Operating Temperature：-40°C ~ 75°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：-
- Voltage - Collector Emitter Breakdown (Max)：-
- Current - Collector (Ic) (Max)：-
- Power - Max：-
- Current - Collector Cutoff (Max)：400 µA
- Input Capacitance (Cies) @ Vce：-
Download product information
Overview

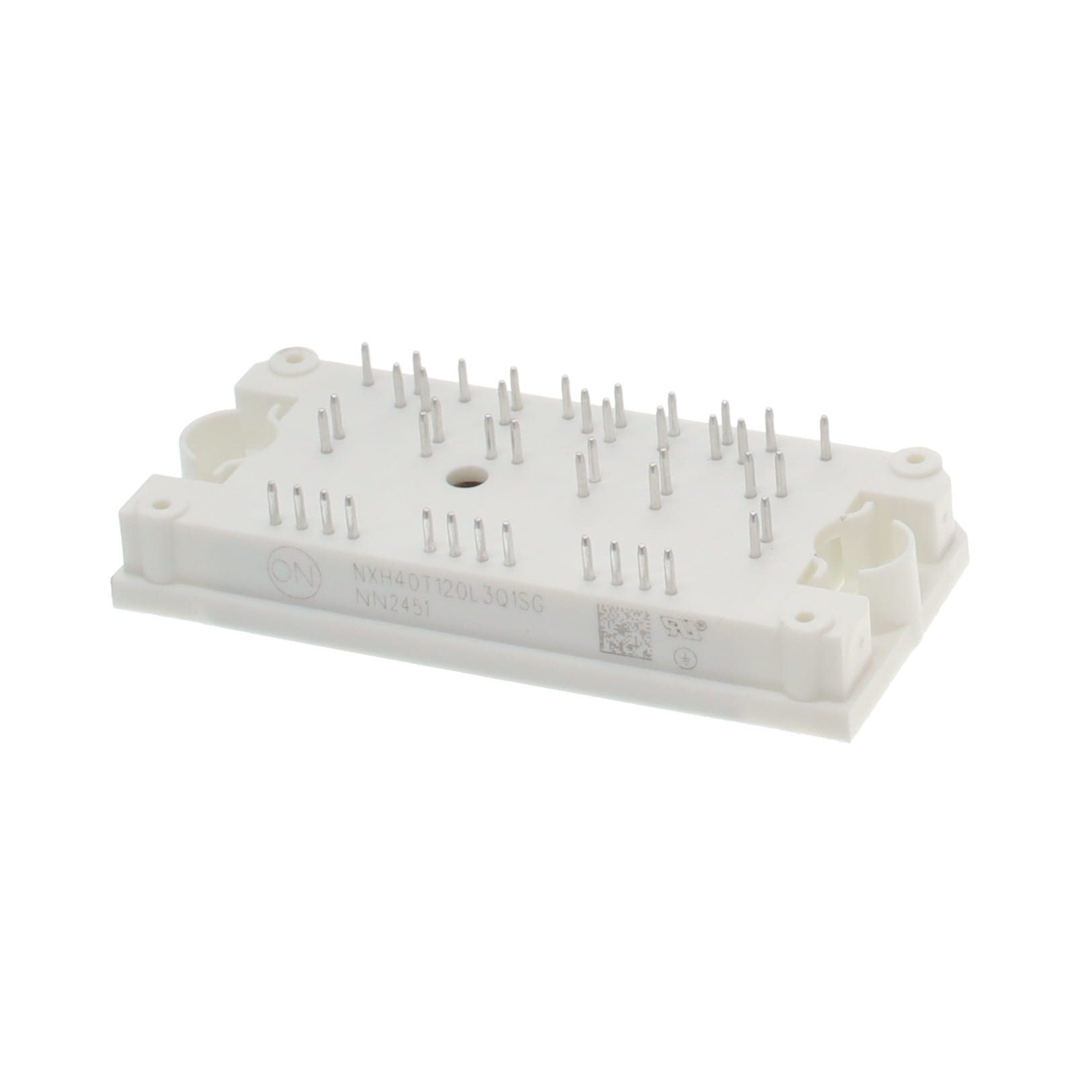

The NXH40T120L3Q1SG is a Q1 3-phase T-type neutral-point clamped (TNPC) power module from onsemi. It integrates three channels, each containing two 1200 V, 40 A IGBTs with inverse diodes and two 650 V, 25 A IGBTs with inverse diodes. The device features solder pins, operates within a junction temperature range of -40°C to 175°C, and includes an integrated NTC thermistor. Maximum continuous collector current is rated at 40 A for the high-side IGBTs and 42 A for the neutral-point IGBTs at TC = 80°C. The package dimensions are 82.5 mm x 37.4 mm x 12 mm.
Feature Summary
- Three-channel TNPC topology integrating mixed-voltage IGBTs and inverse diodes
- Integrated NTC thermistor for thermal monitoring
- Solder pin configuration for board mounting
- RoHS compliant and lead-free construction
Applications
- Solar inverters
- Uninterruptible Power Supplies (UPS)
- Energy storage systems
Procurement Notes
Verify the ordering suffix 'SG' corresponds to the solder pin variant rather than press-fit options. Confirm RoHS compliance status and check for specific assembly or test site codes in the marking diagram. Ensure the procurement documentation matches the Case 180BN mechanical outline specifications provided in the datasheet.
Selection Notes
Select this module for applications requiring a compact 3-phase TNPC solution with mixed voltage ratings. Verify that the 1200 V rating for the main switches and 650 V rating for the neutral-point switches align with the system DC bus requirements. Consider the thermal resistance values when designing the heatsink interface.
Part Context
This component belongs to the NXH40T120L3Q1 series of Q1 3-phase TNPC modules. The 'SG' suffix specifically denotes the version equipped with solder pins, distinguishing it from variants like 'PG' or 'PTG' which utilize press-fit pins. All variants share the same internal circuit topology and electrical characteristics.
Replacement Considerations
NXH40T120L3Q1PG: Identical electrical performance but utilizes press-fit pins instead of solder pins. NXH40T120L3Q1PTG: Identical electrical performance with press-fit pins and pre-applied thermal interface material.
