O 19,20-JTP53HC-F-P-3,3-LF

Oscillators Overview

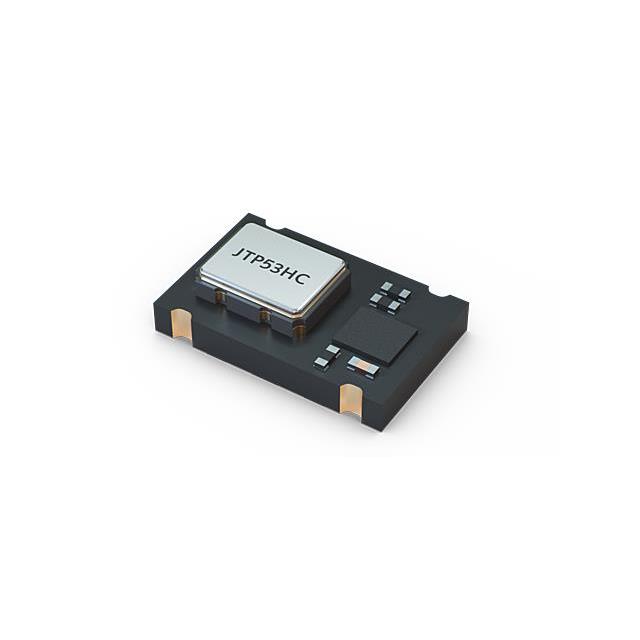

The O 19,20-JTP53HC-F-P-3,3-LF is a Temperature Compensated Crystal Oscillator (TCXO) manufactured by Jauch Quartz. It operates at a nominal frequency of 19.2 MHz with HCMOS output logic levels. The device requires a supply voltage of 3.3 V and features an ultra-flat 8-SMD, No Lead package. It supports a wide operating temperature range from -40°C to +105°C and offers high frequency stability of ±280 ppb. Maximum current consumption is specified at 10 mA.

Oscillators Feature Summary

• Temperature compensated crystal oscillator design for stable frequency performance
• HCMOS output interface compatible with standard digital logic circuits
• Ultra-flat surface mount package suitable for space-constrained applications
• Wide industrial temperature range operation capability

Oscillators Applications

• Wireless communication modules requiring precise timing references
• Portable electronic devices with limited board space
• Industrial measurement equipment needing stable clock signals
• Battery-powered systems utilizing low-voltage CMOS logic

Oscillators Procurement Notes

Verify the specific frequency tolerance and load capacitance requirements against your circuit design before ordering. Confirm that the HCMOS output voltage levels align with your system's input thresholds. Ensure the 8-SMD no-lead package dimensions fit within your PCB footprint constraints. Check for any specific reflow soldering profile recommendations provided in the official datasheet to ensure reliable assembly.

Oscillators Selection Notes

Select this component when a compact TCXO solution is required for 19.2 MHz applications. Consider the ±280 ppb stability specification for environments subject to significant thermal variations. Evaluate the 10 mA current draw against your power budget constraints. Compare the physical size of the 8-SMD package against available alternatives if board real estate is critical.

Oscillators Part Context

This part belongs to Jauch Quartz's line of precision oscillators designed for modern electronics. It complements other models like the O 20.0-JO22 series which offer different form factors or output types. The JTP53HC series specifically targets applications demanding high stability in small packages. It represents a specialized solution within the broader quartz oscillator market.

Oscillators Replacement Considerations

Direct substitutes may include other 19.2 MHz TCXOs in 8-SMD packages from Jauch or competitors. Verify pinout compatibility and electrical specifications such as supply voltage and output logic type. Models like O 19,20-JTP53HC-F-K-3,3-LF may differ only in packaging or tape/reel configuration. Always confirm mechanical dimensions and thermal characteristics before substitution.

Oscillators FAQ

What is the output logic type of this oscillator?

The O 19,20-JTP53HC-F-P-3,3-LF utilizes HCMOS output logic levels.

Does this component support temperature compensation?

Yes, it is a Temperature Compensated Crystal Oscillator (TCXO) designed to maintain frequency stability across varying temperatures.

What is the maximum operating temperature for this device?

The device supports an operating temperature range up to +105°C.
