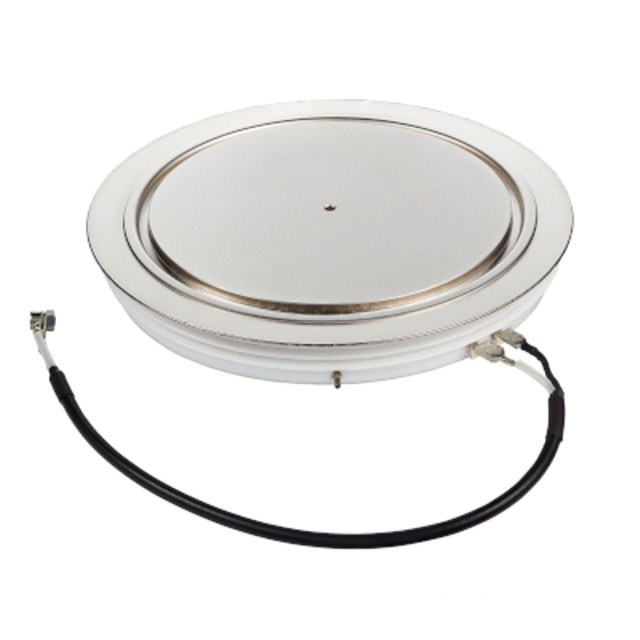

P3000ZL45X168HPSA1

Overview

The P3000ZL45X168HPSA1 is a silicon IGBT module manufactured by Infineon Technologies, belonging to the P3000ZL45 series. It utilizes press-pack mounting technology for high-power applications. The component features an NPT (Non-Punch-Through) field-stop structure designed for robust performance in demanding power conversion environments. Official documentation identifies this specific part number variant as P3000ZL45X168APTHPSA1, with additional aliases including P3000ZL45X168APT and SP005742881. The device is classified under discrete semiconductor modules and IGBTs, utilizing standard silicon technology.

Feature Summary

• Press-pack mechanical configuration for direct thermal interface and high current density handling
• NPT field-stop IGBT technology optimized for low conduction losses and reliable switching
• Silicon-based construction ensuring compatibility with standard high-power cooling systems

Applications

• High-power industrial motor drives requiring robust thermal management
• Medium voltage traction inverters for electric vehicles or rail transport
• High-capacity renewable energy conversion systems such as wind turbine converters

Procurement Notes

Verify the exact suffix designation when sourcing, as official records list P3000ZL45X168APTHPSA1 as the primary identifier. Confirm RoHS compliance status through the manufacturer's detailed documentation before integration. Ensure supply chain channels are authorized to guarantee authenticity of the Infineon Technologies branding and part markings.

Selection Notes

Select this module for applications necessitating press-pack form factors rather than standard insulated gate bipolar transistor packages. Evaluate thermal resistance requirements against the specific heatsink design, as press-pack devices rely on uniform pressure distribution. Compare electrical characteristics with other members of the P3000ZL45 family to ensure voltage and current ratings match the system topology.

Part Context

This component is part of Infineon's extensive portfolio of high-power discrete semiconductors. The P3000ZL45 series represents a line of IGBT modules engineered for medium to high power levels. The specific model integrates advanced silicon chip technology within a rugged mechanical housing suitable for heavy-duty industrial and transportation sectors.

Replacement Considerations

Cross-reference with part numbers sharing the P3000ZL45 prefix for potential functional equivalents. Verify pinout compatibility and thermal interface dimensions before substituting. Consult official Infineon selection guides for updated alternatives if the specific suffix variant is discontinued.
