PE7087-9

Attenuators Overview

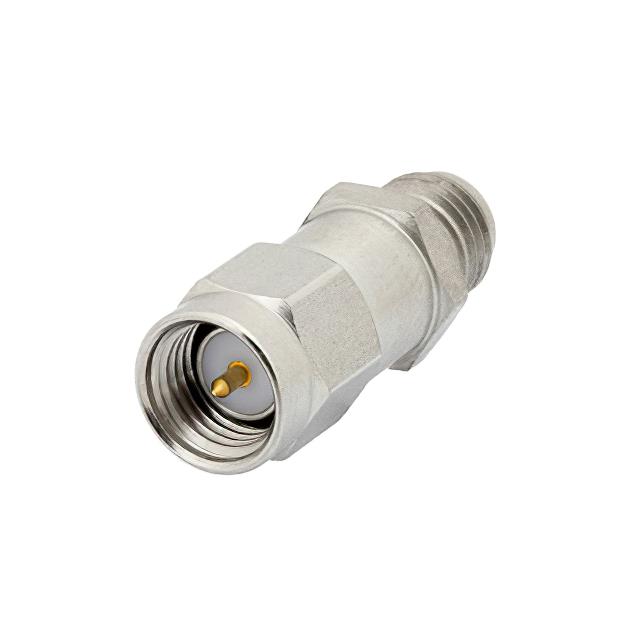

The Pasternack PE7087-9 is a fixed RF attenuator designed for high-frequency applications. It provides a nominal attenuation of 9 dB with a frequency range extending from 0 Hz to 26 GHz. The device features SMA male to SMA female connectors and operates within a 50 Ohm impedance system. It is rated for a maximum power handling capacity of 2 Watts at the specified attenuation value. The unit typically exhibits a Voltage Standing Wave Ratio (VSWR) of 1.5:1 or less, ensuring efficient signal transmission. Constructed with a stainless steel body, it offers durability in demanding environments.

Attenuators Feature Summary

• Provides precise 9 dB fixed attenuation across a wide microwave frequency spectrum up to 26 GHz
• Features robust SMA male-to-female interface for reliable coaxial interconnection
• Utilizes a stainless steel housing for enhanced mechanical strength and environmental resistance
• Supports continuous power loads up to 2 Watts while maintaining stable electrical performance

Attenuators Applications

• Microwave test and measurement setups requiring signal level reduction
• RF circuit biasing and isolation in communication systems
• Signal conditioning in radar and electronic warfare equipment
• Laboratory calibration and characterization of high-frequency components

Attenuators Procurement Notes

Verify the specific connector gender configuration matches the system requirements, as variations exist within the series. Confirm that the operating frequency does not exceed the 26 GHz limit to ensure performance integrity. Check for any recent product change notices regarding material composition or dimensional tolerances. Ensure the power rating of 2 Watts aligns with the actual thermal conditions of the installation environment.

Attenuators Selection Notes

Select this component when a fixed 9 dB reduction is required in the sub-26 GHz range. Consider the SMA interface compatibility with existing cabling and fixtures. Evaluate the 2 Watt power rating against peak and average signal levels. Compare VSWR specifications if impedance matching precision is critical for the specific application chain.

Attenuators Part Context

This part belongs to Pasternack's line of connectorized attenuators, specifically designed for microwave frequencies. It complements other fixed and variable attenuators in the portfolio, offering a standardized solution for signal management. The series supports various attenuation values and connector types, catering to diverse RF engineering needs.

Attenuators Replacement Considerations

Direct substitutes may include other 9 dB fixed attenuators with SMA interfaces and similar 26 GHz ratings. Verify equivalent VSWR and power handling capabilities before substitution. Cross-reference with other manufacturers' offerings that meet the same electrical and mechanical specifications.
