PJF60R290E_T0_00001

$0.84

Description：600V N-CHANNEL SUPER JUNCTION MO
Series：-
Mfr：Panjit International Inc.
Package：Tube

SKU:93b6360c2e5b Category: Single FETs, MOSFETs Brand: Panjit International Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

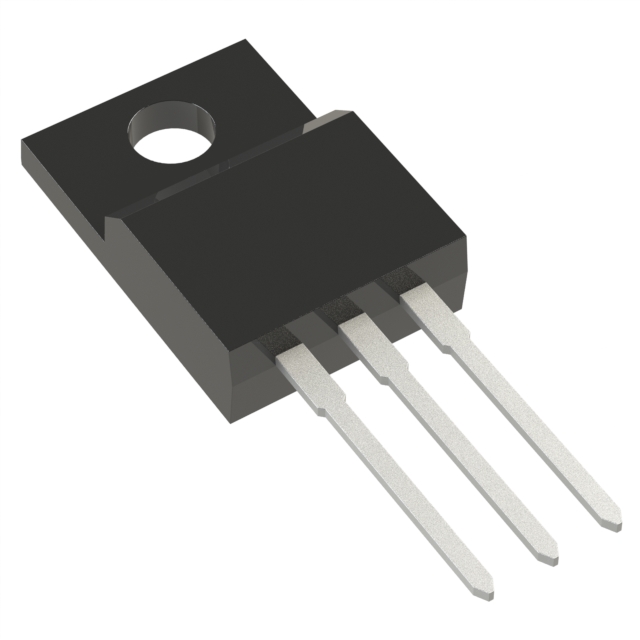

PJF60R290E_T0_00001 is listed in the Single FETs, MOSFETs range at ChipApex. The manufacturer field lists Panjit International Inc.. Its product description is 600V N-CHANNEL SUPER JUNCTION MO. Review the specifications below when checking this part for your BOM.

Single FETs, MOSFETs specifications for PJF60R290E_T0_00001

Description：600V N-CHANNEL SUPER JUNCTION MO
Series：-
Mfr：Panjit International Inc.
Package：Tube
FET Type：N-Channel
Technology：MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)：600 V
Current - Continuous Drain (Id) @ 25°C：1.7A (Ta), 15A (Tc)
Drive Voltage (Max Rds On, Min Rds On)：10V
Rds On (Max) @ Id, Vgs：290mOhm @ 6.5A, 10V
Vgs(th) (Max) @ Id：4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs：40 nC @ 10 V
Vgs (Max)：±20V
Input Capacitance (Ciss) (Max) @ Vds：1013 pF @ 25 V
FET Feature：-
Power Dissipation (Max)：60W (Tc)
Operating Temperature：-55°C ~ 150°C (TJ)
Grade：-
Qualification：-
Mounting Type：Through Hole
Supplier Device Package：ITO-220AB-F
Package / Case：TO-220-3 Full Pack, Isolated Tab

Single FETs, MOSFETs datasheet and documents for PJF60R290E_T0_00001

PJF60R290E_T0_00001

Single FETs, MOSFETs Overview

The PJF60R290E is a 600V N-Channel Super Junction MOSFET manufactured by Panjit International Inc. It features a maximum continuous drain current of 15A at TC=25°C and a typical on-resistance (RDS(on)) of 0.25Ω at VGS=10V and ID=6.5A. The device utilizes an ITO-220AB-F package with a thermal resistance (RθJC) of 2.08°C/W. Electrical characteristics include a gate threshold voltage of 3V, total gate charge of 40nC, and a reverse recovery time of 441ns.

Single FETs, MOSFETs Feature Summary

Utilizes Super Junction technology to achieve low on-resistance and fast switching speeds.
Complies with EU RoHS 2.0 standards and uses green molding compound per IEC 61249.
Designed for low noise operation and high reliability in power applications.

Single FETs, MOSFETs Applications

High-frequency power supply circuits
DC-to-DC converter modules
Motor control systems

Single FETs, MOSFETs Procurement Notes

Verify the specific suffix T0_00001 corresponds to the ITO-220AB-F package variant rather than the standard TO-220AB. Confirm compliance requirements against the latest datasheet revision as Panjit reserves the right to modify content without notification. Ensure ordering documentation matches the halogen-free marking version specified in the packaging information section.

Single FETs, MOSFETs Selection Notes

Select this component when a 600V rating and 15A continuous current capability are required within an ITO-220AB-F footprint. Consider the 0.25Ω RDS(on) for conduction loss calculations at 6.5A. Evaluate the 2.08°C/W junction-to-case thermal resistance for heatsink design purposes compared to the higher thermal resistance of alternative packages.

Single FETs, MOSFETs Part Context

This part belongs to the PJP/PJF 600V Super Junction MOSFET series produced by Panjit International Inc. The PJF designation specifically identifies the ITO-220AB-F package configuration, distinguishing it from the standard TO-220AB form factor found in the PJP counterpart. Both share identical electrical performance metrics.

Single FETs, MOSFETs Replacement Considerations

The PJP60R290E_T0_00001 serves as a direct functional equivalent with identical electrical specifications but utilizes a TO-220AB package instead of the ITO-220AB-F.
