PJQ5560A-AU_R2_002A1

$2.86

Description：60V N-CHANNEL ENHANCEMENT MODE M
Series：-
Mfr：Panjit International Inc.
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:afe61fd84d01 Category: Single FETs, MOSFETs Brand: Panjit International Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

PJQ5560A-AU_R2_002A1 is listed in the Single FETs, MOSFETs range at ChipApex. The manufacturer field lists Panjit International Inc.. Its product description is 60V N-CHANNEL ENHANCEMENT MODE M. Review the specifications below when checking this part for your BOM.

Single FETs, MOSFETs specifications for PJQ5560A-AU_R2_002A1

Description：60V N-CHANNEL ENHANCEMENT MODE M
Series：-
Mfr：Panjit International Inc.
Package：Tape & Reel (TR),Cut Tape (CT)
FET Type：-
Technology：-
Drain to Source Voltage (Vdss)：-
Current - Continuous Drain (Id) @ 25°C：-
Drive Voltage (Max Rds On, Min Rds On)：-
Rds On (Max) @ Id, Vgs：-
Vgs(th) (Max) @ Id：-
Gate Charge (Qg) (Max) @ Vgs：-
Vgs (Max)：-
Input Capacitance (Ciss) (Max) @ Vds：-
FET Feature：-
Power Dissipation (Max)：-
Operating Temperature：-
Grade：-
Qualification：-
Mounting Type：-
Supplier Device Package：-
Package / Case：-

Single FETs, MOSFETs datasheet and documents for PJQ5560A-AU_R2_002A1

PJQ5560A-AU_R2_002A1

Single FETs, MOSFETs Overview

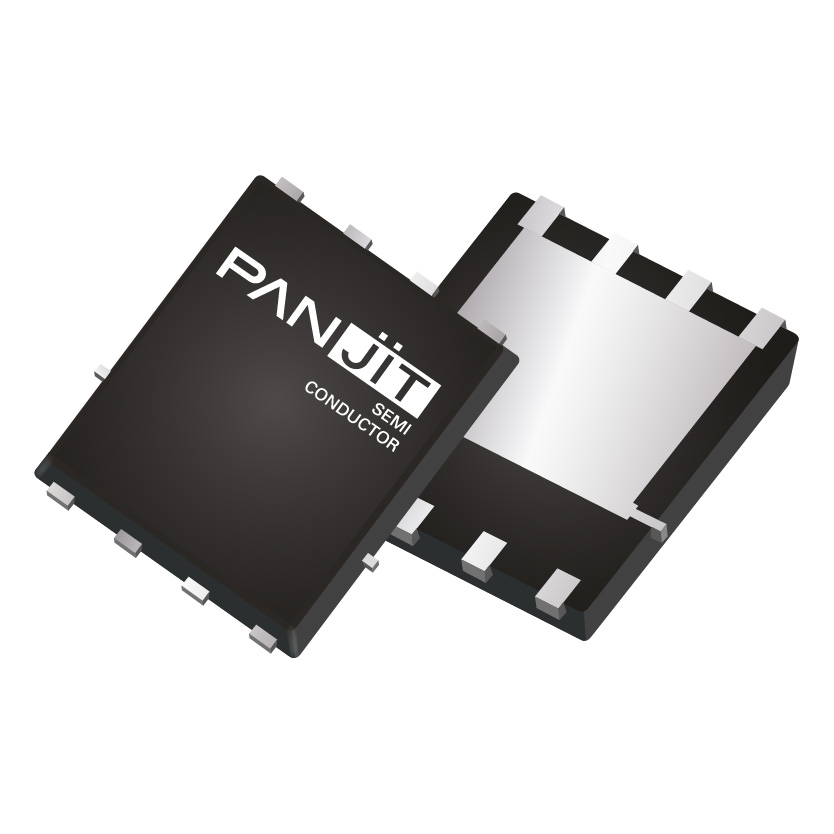

The PJQ5560A-AU_R2_002A1 is a 60V N-Channel Enhancement Mode MOSFET manufactured by Panjit International Inc. It utilizes silicon technology and is housed in a DFN5060-8L surface-mount package. The device supports a continuous drain current of 190 A at 25°C case temperature and offers a maximum on-resistance of 2.6 mΩ at VGS=10V and ID=20A. Key electrical parameters include a gate threshold voltage range of 1.5V to 3V, a total gate charge of 107 nC maximum, and an operating junction temperature range from -55°C to 175°C.

Single FETs, MOSFETs Feature Summary

Qualified for automotive applications under the AEC-Q101 standard.
Features logic level drive capability with low on-state resistance.
Constructed with lead-free materials compliant with EU RoHS 2.0 directives.
Utilizes green molding compound adhering to IEC 61249 standards.

Single FETs, MOSFETs Applications

Automotive power distribution systems
High-current DC-DC converter circuits
Motor control applications

Single FETs, MOSFETs Procurement Notes

Verify the specific ordering suffix matches the required packaging configuration. Confirm that the component meets all necessary automotive qualification standards for the intended deployment environment. Ensure compatibility with the designated thermal management infrastructure to maintain safe operating temperatures during high-current operations.

Single FETs, MOSFETs Selection Notes

Select this component for designs requiring high current handling within a compact footprint. Evaluate the thermal resistance characteristics against the system's heat dissipation capabilities. Consider the gate charge requirements relative to the driving circuitry to ensure efficient switching performance.

Single FETs, MOSFETs Part Context

This part belongs to the PJQ5560A series of N-Channel MOSFETs produced by Panjit International Inc. The series focuses on providing robust performance for automotive-grade electronics. The specific model integrates advanced silicon gate technology to optimize conduction losses while maintaining reliable operation under varying thermal conditions.

Single FETs, MOSFETs Replacement Considerations

Consult official manufacturer documentation to identify verified substitute part numbers. Do not assume cross-compatibility based solely on voltage or current ratings without verifying pinout and thermal specifications.
