PRHMB200W6

$69.84

Description：IGBT MODULE, 1IN1, BRAKE CHOPPER
Series：-

SKU:40eab2b12819 Category: IGBT Modules Brand: KYOCERA AVX

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IGBT MODULE, 1IN1, BRAKE CHOPPER
Series：-
Mfr：KYOCERA AVX
Package：Bulk
IGBT Type：-
Configuration：Single
Vce(on) (Max) @ Vge, Ic：1.95V @ 15V, 200A
Input：Standard
NTC Thermistor：No
Operating Temperature：-40°C ~ 150°C (TJ)
Mounting Type：Chassis Mount
Package / Case：Module
Supplier Device Package：Module
Voltage - Collector Emitter Breakdown (Max)：650 V
Current - Collector (Ic) (Max)：200 A
Power - Max：595 W
Current - Collector Cutoff (Max)：1 mA
Input Capacitance (Cies) @ Vce：17000 pF @ 25 V

Download product information

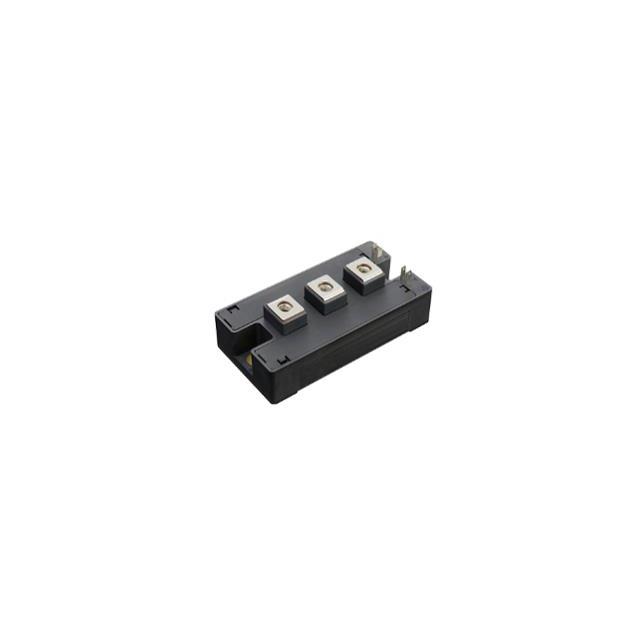

PRHMB200W6

Overview

The PRHMB200W6 is a single IGBT module from the KYOCERA AVX series, designed for high-power applications. It features a 650 V collector-emitter voltage rating and a continuous collector current of 200 A. The module integrates a fast recovery diode (FRD) in a 1-in-1 brake chopper circuit configuration. It utilizes screw mount installation style and is rated for a maximum operating temperature of +150°C with a maximum gate-emitter voltage of 20 V.

Feature Summary

Integrates an IGBT and a fast recovery diode (FRD) within a single chassis-mount package.
Configured specifically for brake chopper circuit applications to manage regenerative energy.
Engineered for high thermal performance with a maximum junction temperature capability of +150°C.

Applications

Brake chopper circuits in industrial drives
High-power motor control systems
Regenerative braking applications

Procurement Notes

Verify the exact part number spelling upon order, as 'PRHMB' and 'PRFMB' variants exist within the same manufacturer line. Confirm that the specific 1-in-1 brake chopper configuration matches your schematic requirements. Ensure mechanical mounting hardware specifications align with your chassis design before finalizing procurement.

Selection Notes

Select this component when a combined IGBT and FRD solution is required for space-constrained brake chopper designs. The 650V rating suits medium-voltage industrial networks. Consider the 200A current capacity against your peak load requirements. Verify that the screw-mount form factor fits your existing thermal management infrastructure.

Part Context

This component belongs to the KYOCERA AVX IGBT module family, which provides robust power switching solutions. The PRHMB200W6 specifically addresses the need for integrated freewheeling diodes in chopper circuits, simplifying assembly compared to discrete component implementations. It represents a specialized subset of their broader power electronics portfolio focused on industrial automation.
