PTVA120501EAV1XWSA1

Overview

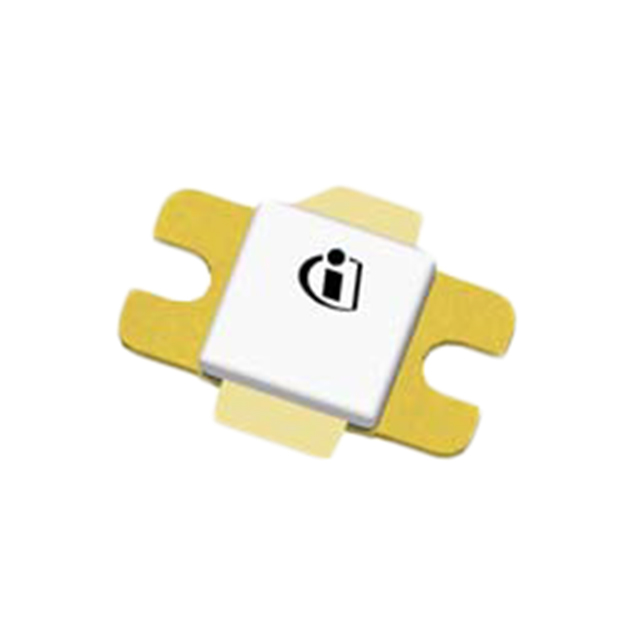

The PTVA120501EAV1XWSA1 is an RF MOSFET utilizing LDMOS technology, manufactured by Infineon Technologies. It operates within the frequency range of 1.2GHz to 1.4GHz and provides a gain of 17dB. The device is rated for a maximum voltage of 105V and delivers an output power of 50W. It is housed in the H-36265-2 package.

Feature Summary

• Utilizes LDMOS technology for RF applications
• Provides 17dB gain at specified frequencies
• Delivers 50W output power
• Rated for 105V operation

Applications

• RF power amplification
• Base station transmitters
• Industrial, Scientific, and Medical (ISM) equipment

Procurement Notes

Verify the manufacturer designation carefully, as this specific part number variant is associated with MACOM Technology Solutions in public distributor records rather than Infineon. Confirm the exact suffix 'V1XWSA1' against official component databases to ensure compatibility with your Bill of Materials and avoid sourcing errors due to potential naming discrepancies between manufacturers.

Selection Notes

Select this component when designing circuits requiring 50W output power in the 1.2GHz to 1.4GHz band. Ensure the thermal management solution supports the power dissipation requirements of the H-36265-2 package. Verify that the system voltage does not exceed the 105V rating and that the drive signal can achieve the specified 17dB gain.

Part Context

This component belongs to the family of high-power RF LDMOS transistors designed for broadband applications. These devices are engineered for robustness and linearity in demanding RF environments. The H-36265-2 package facilitates efficient heat transfer and integration into standard RF amplifier modules used in communication infrastructure.

Replacement Considerations

Publicly confirmed substitute part numbers for PTVA120501EAV1XWSA1 were not identified in available documentation. Cross-referencing with other 50W LDMOS devices in the H-36265-2 package may be necessary, but electrical parameter matching is required.
