PXAC210552FC-V1-R0

$54.59

Description：RF MOSFET
Series：*

SKU:19c4a37f6e8b Category: RF FETs, MOSFETs Brand: MACOM Technology Solutions

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：RF MOSFET
Series：*
Mfr：MACOM Technology Solutions
Package：Tape & Reel (TR)
Technology：-
Frequency：-
Gain：-
Voltage - Test：-
Current Rating (Amps)：-
Noise Figure：-
Current - Test：-
Power - Output：-
Voltage - Rated：-
Grade：-
Qualification：-
Mounting Type：-
Package / Case：-
Supplier Device Package：-
Configuration：-

Download product information

PXAC210552FC-V1-R0

Overview

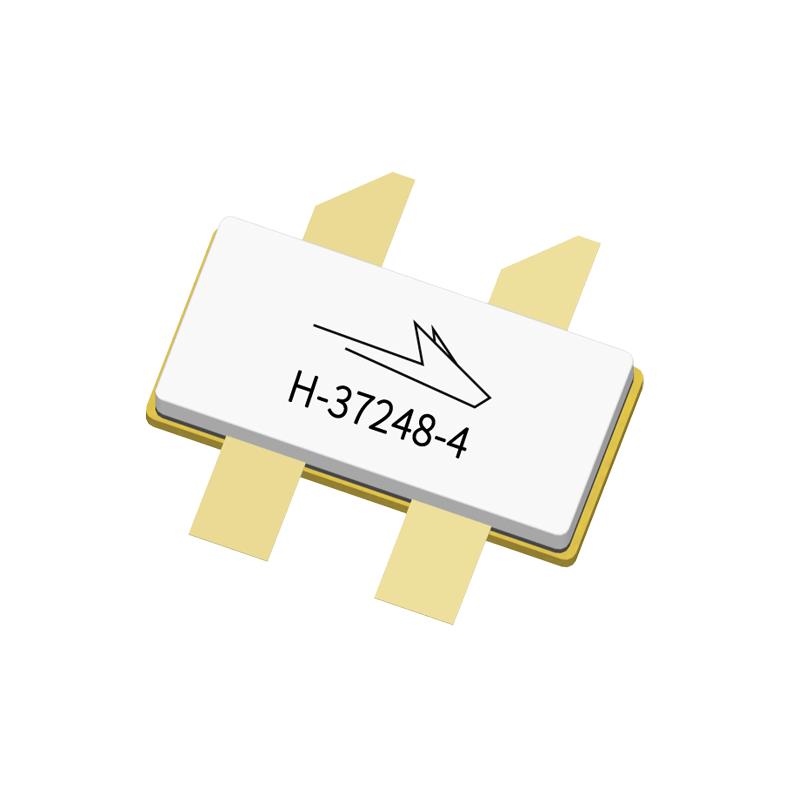

The PXAC210552FC-V1-R0 is a dual N-channel RF LDMOS FET manufactured by MACOM Technology Solutions. It operates within the frequency range of 1.805 GHz to 2.17 GHz, delivering an output power of 55 W with a gain of 17.2 dB. The device features a Vds breakdown voltage of 65 V and an Rds(on) of 380 mOhms. It utilizes Si technology and supports a maximum operating temperature of +225 C. Packaged in the H-37248-4 SMD/SMT format, it accepts a Vgs of +10 V.

Feature Summary

Asymmetric design optimized for multi-standard cellular power amplifier applications
Dual N-channel configuration providing high output power capability
Silicon-based LDMOS technology ensuring robust thermal performance

Applications

Multi-standard cellular power amplifier modules
RF signal generation in telecommunications infrastructure
Broadband wireless communication systems

Procurement Notes

Verify current availability status as supply conditions may vary. Confirm RoHS compliance details through official documentation. Ensure ordering suffixes match specific manufacturing revisions. Cross-reference datasheet parameters against application requirements before procurement.

Selection Notes

Select this component for applications requiring high linearity and efficiency in cellular bands. Evaluate thermal management capabilities given the high operating temperature rating. Consider the asymmetric layout benefits for complex PA designs. Verify package compatibility with existing PCB footprints.

Part Context

This part belongs to MACOM's portfolio of RF MOSFET transistors designed for demanding wireless infrastructure. It represents a specialized solution for modern cellular standards requiring high power density. The product line focuses on integrating advanced silicon processes for improved reliability.

Replacement Considerations

No public confirmed substitute part numbers are available. Consult manufacturer engineering support for direct replacements or pin-compatible alternatives.
