PXEUGCJANF-50.000000

Oscillators Overview

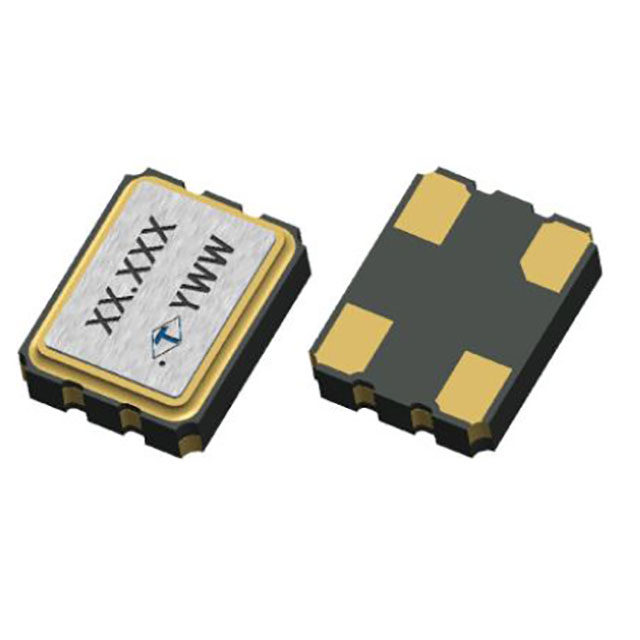

The Taitien PXEUGCJANF-50.000000 is a CMOS standard crystal oscillator (XO) operating at a frequency of 50 MHz. It functions with a supply voltage of 3.3V and features an enable/disable control function. The device exhibits a frequency stability of ±50ppm and operates within a temperature range of -20°C to +70°C. Maximum supply current is 27mA, while the package dimensions are surface mount type.

Oscillators Feature Summary

• CMOS output signal generation for digital timing applications
• Integrated enable and disable functionality for power management
• Surface mount packaging suitable for automated assembly processes

Oscillators Applications

• General purpose digital circuit timing
• Microcontroller clock sources
• Communication interface synchronization

Oscillators Procurement Notes

Verify that the specific part number matches the required frequency and tolerance specifications for your design. Confirm the supply voltage compatibility with your system logic levels. Ensure the operating temperature range aligns with your environmental requirements. Check the latest datasheet for any updates regarding pin configuration or electrical characteristics before finalizing procurement.

Oscillators Selection Notes

Select this component when a 50 MHz CMOS clock source with enable/disable capability is required. Consider the ±50ppm stability requirement against your system's jitter tolerance. Evaluate the 3.3V supply constraint against available power rails. Compare the physical footprint and mounting style against PCB layout constraints and assembly capabilities.

Oscillators Part Context

This oscillator belongs to the PX-U series from Taitien, designed for general timing applications. It utilizes a crystal resonator as the base element. The series supports various frequencies and packages, providing flexibility for different electronic designs requiring stable clock signals in consumer and industrial electronics.

Oscillators Replacement Considerations

Direct substitutes must match the 50 MHz frequency, CMOS output, 3.3V supply, and enable/disable function. Verify pinout compatibility if replacing with other manufacturers' components. Ensure equivalent frequency stability and temperature range specifications are met to maintain system performance.
