QBL8RGB60D0-2897

LED Indication - Discrete Overview

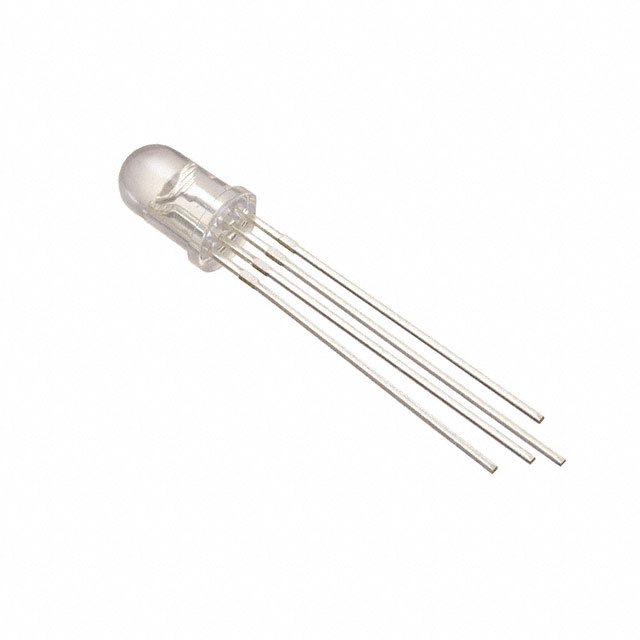

The QBL8RGB60D0-2897 is a tri-color LED indicator by QT Brightek, featuring Red (624nm), Green (525nm), and Blue (470nm) wavelengths. It utilizes a T-1 3/4 (5mm) through-hole package with a round lens and a 60-degree viewing angle. Electrical characteristics include a forward voltage of 2V for Red, 3.2V for Green, and 2V for Blue, with a standard forward current of 20mA per color. The component operates within a temperature range of -40°C to +85°C.

LED Indication - Discrete Feature Summary

• Tri-color RGB configuration for multi-state indication
• Standard T-1 3/4 through-hole mounting format
• Wide operating temperature capability

LED Indication - Discrete Applications

• Electronic status indicators
• Control panel signaling
• Decorative lighting effects

LED Indication - Discrete Procurement Notes

Verify the specific datasheet version to confirm electrical tolerances and thermal specifications. Ensure compatibility with existing PCB footprints for T-1 3/4 packages. Cross-reference wavelength data against application requirements for accurate color rendering. Confirm lead-free compliance status prior to integration into regulated assemblies.

LED Indication - Discrete Selection Notes

Select this component when distinct red, green, and blue states are required in a single housing. The 5mm form factor suits standard through-hole manufacturing processes. Consider the 60-degree beam width for visibility requirements. Evaluate the 20mA drive current against available GPIO or driver capabilities.

LED Indication - Discrete Part Context

This part belongs to the QBL8RGB series of multicolor LEDs from QT Brightek. The series provides discrete RGB options for visual feedback applications. The T-1 3/4 package ensures mechanical compatibility with legacy and modern through-hole designs requiring compact multi-color solutions.

LED Indication - Discrete Replacement Considerations

Direct substitutes must match the T-1 3/4 package, RGB color sequence, and electrical ratings. Verify pinout configurations to ensure correct anode/cathode alignment. Check peak wavelength tolerances to maintain color consistency in final assemblies.
