QBLP617-R-2897

LED Indication - Discrete Overview

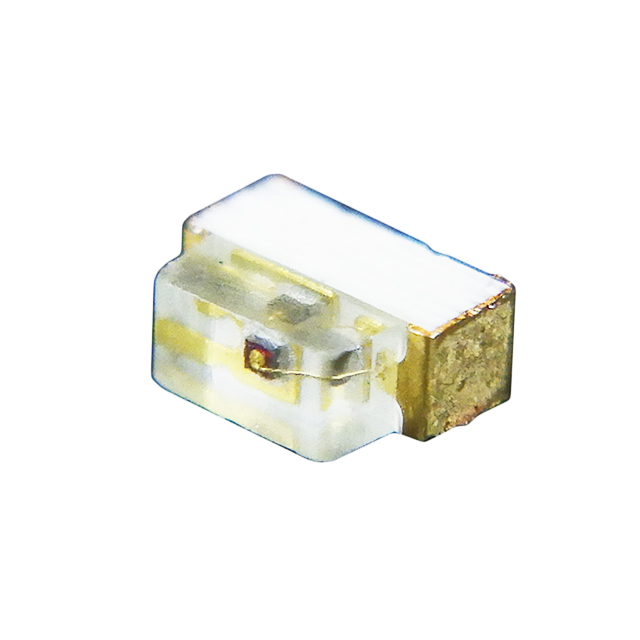

The QBLP617-R-2897 is a red light-emitting diode from the QBLP617 series by QT Brightek. It features a clear lens and operates at a peak wavelength of 630nm with a dominant wavelength of 625nm. The component utilizes a 2-SMD, no-lead package in a 0602 (1605 metric) surface-mount configuration. It has a typical forward voltage of 2V and is tested at 5mA. The LED offers a wide viewing angle of 140 degrees and emits 35mcd of luminous intensity. It is designed for right-angle installation and complies with RoHS3 standards.

LED Indication - Discrete Feature Summary

• Provides high-intensity red illumination suitable for visual status indication
• Features a right-angle surface-mount design for flexible PCB layout options
• Utilizes a compact 0602 footprint to support dense circuit board arrangements

LED Indication - Discrete Applications

• Electronic equipment status indicators
• Panel-mounted device signaling
• Consumer appliance control interfaces

LED Indication - Discrete Procurement Notes

Verify the specific suffix against official manufacturer documentation to confirm optical characteristics and packaging details. Ensure compatibility with standard reflow soldering profiles and moisture sensitivity level requirements during assembly planning.

LED Indication - Discrete Selection Notes

Select this component when a low-profile, right-angle red indicator is required for space-constrained designs. Consider the 2V forward voltage drop and 5mA test current for appropriate driver circuit design and power budget calculations.

LED Indication - Discrete Part Context

This part belongs to the QBLP617 R/A G2 Series, which focuses on side-view or right-angle LED solutions. The series provides various color options within a standardized 0602 package size, allowing designers to maintain consistent mechanical footprints while changing optical output colors.

LED Indication - Discrete Replacement Considerations

Direct substitutes include other 0602 red SMD LEDs with similar forward voltage and current ratings. Verify pinout orientation and viewing angle specifications before swapping components to ensure mechanical fit and optical performance alignment.
