QPD1006

Overview

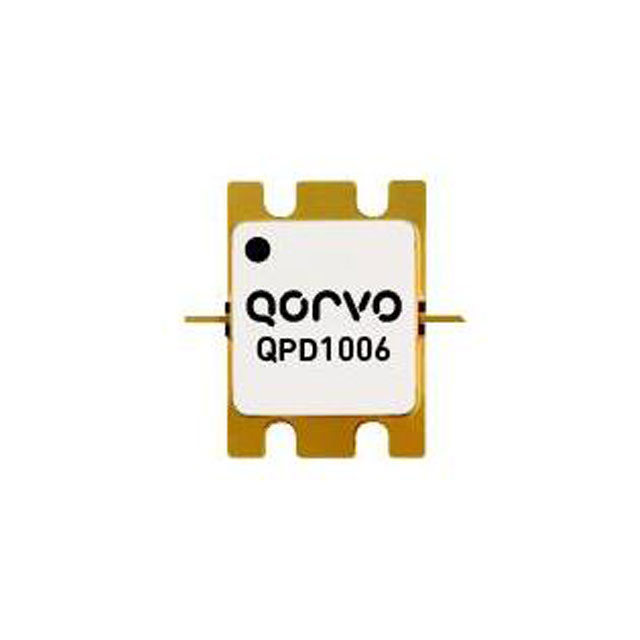

The QPD1006 is a Gallium Nitride (GaN) Radio Frequency Integrated Metal-Oxide-Semiconductor Field-Effect Transistor (RF IMFET) manufactured by Qorvo. It is designed for high-power applications within the frequency range of 1.2 GHz to 1.4 GHz. The device operates at a maximum drain voltage of 50V and delivers an output power of 450W. This component utilizes GaN technology to provide robust performance in demanding RF environments.

Feature Summary

• Utilizes Gallium Nitride (GaN) technology for enhanced power density and efficiency.
• Engineered as an input-matched transistor to simplify circuit design.
• Capable of delivering high output power suitable for broadband infrastructure.

Applications

• Broadband radio frequency power amplification
• Wireless communication infrastructure equipment
• High-power RF signal generation systems

Part Context

The QPD1006 belongs to Qorvo's portfolio of GaN RF IMFETs, which are engineered for high reliability and power density. These devices are typically used in base station architectures where wide bandwidth and high linearity are required. The component represents a shift towards solid-state solutions replacing traditional vacuum tube technologies in high-power RF chains.

Replacement Considerations

Direct replacements must match the 450W output capability, 50V operating voltage, and 1.2–1.4 GHz frequency range. Verify that substitute components offer comparable thermal resistance and input matching characteristics to ensure seamless integration without redesigning the bias or impedance networks.
